Ceramic Capacitor 230pF 220V 221K 5pcs

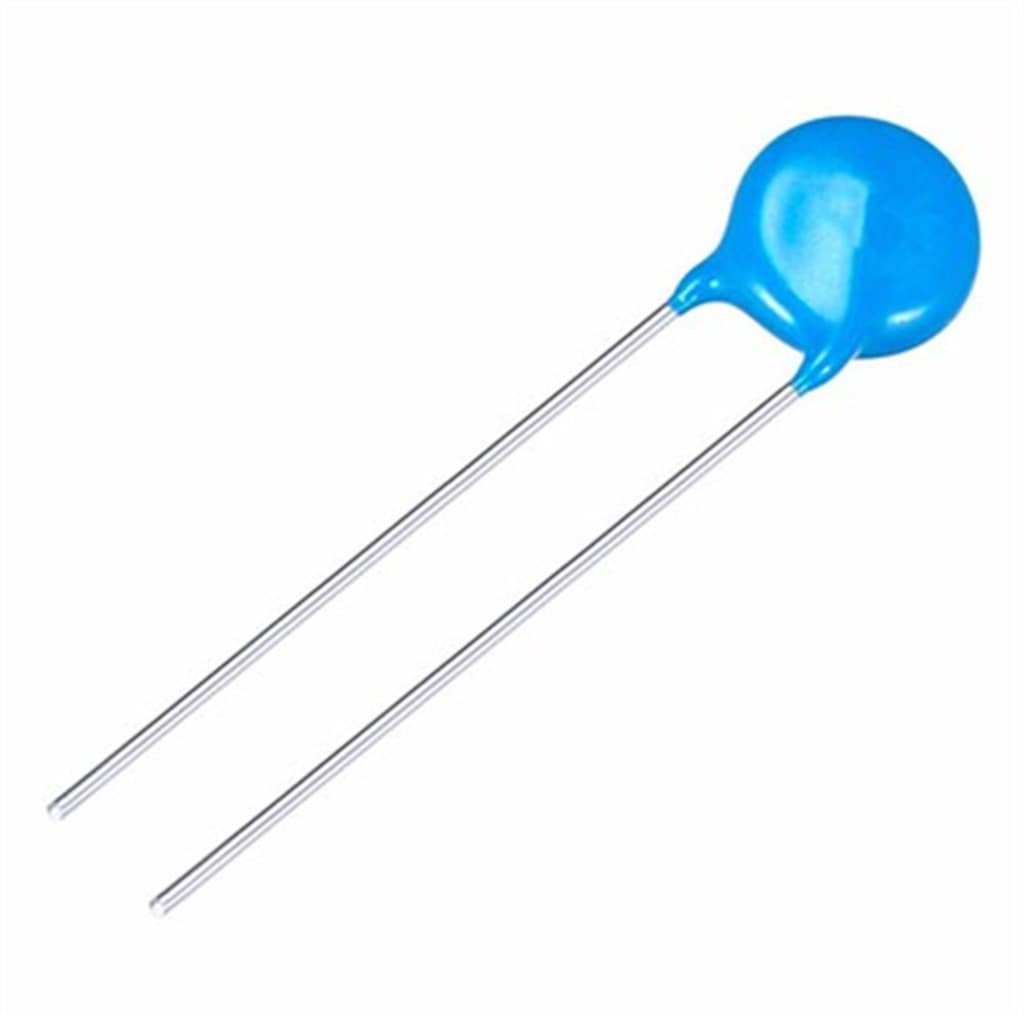

The Ceramic Capacitor 230pF 220V 221K sold here is a 221K metal oxide varistor (MOV), supplied in a pack of 5. It looks like a ceramic disc capacitor, but it works as a voltage-dependent resistor: below about 220 V it passes almost no current, and above that its resistance drops sharply so it clamps surges and spikes. The 221K is meant for 110–120 V AC lines and DC circuits up to 180 V. Note that the 220V in its name is the varistor voltage, not a mains rating, so it is not suitable for 230 V mains.

Ceramic Capacitor 230pF 220V 221K Varistor Specifications

• Component type: metal oxide varistor (MOV), disc type with two leads
• Marking code: 221K (22 × 10¹ = 220 V, K = ±10%)
• Varistor voltage: 220 V ±10% (about 198–242 V), measured at 1 mA DC
• Maximum continuous voltage: 140 V AC or 180 V DC
• Capacitance (as listed): 230 pF
• Polarity: none, works in both directions
• Pack size: 5 pieces

221K Varistor Applications

• Surge protection on 110–120 V AC equipment
• DC supply lines and circuits up to 180 V
• Spike suppression across 110 V relay and contactor coils and DC motors
• The 110 V side of step-down transformers used with imported appliances
• Electronics repairs where a 221K varistor needs replacing

What's in the Box

• 5 × 221K metal oxide varistors

Tip: Do not use the 221K directly on Lebanese 230 V mains: its 140 V AC limit is far too low, and it would overheat and fail. For 230 V lines choose a 431K or 471K. Always fit varistors after a fuse and work only with the power disconnected.
