Beirut ElectroCity

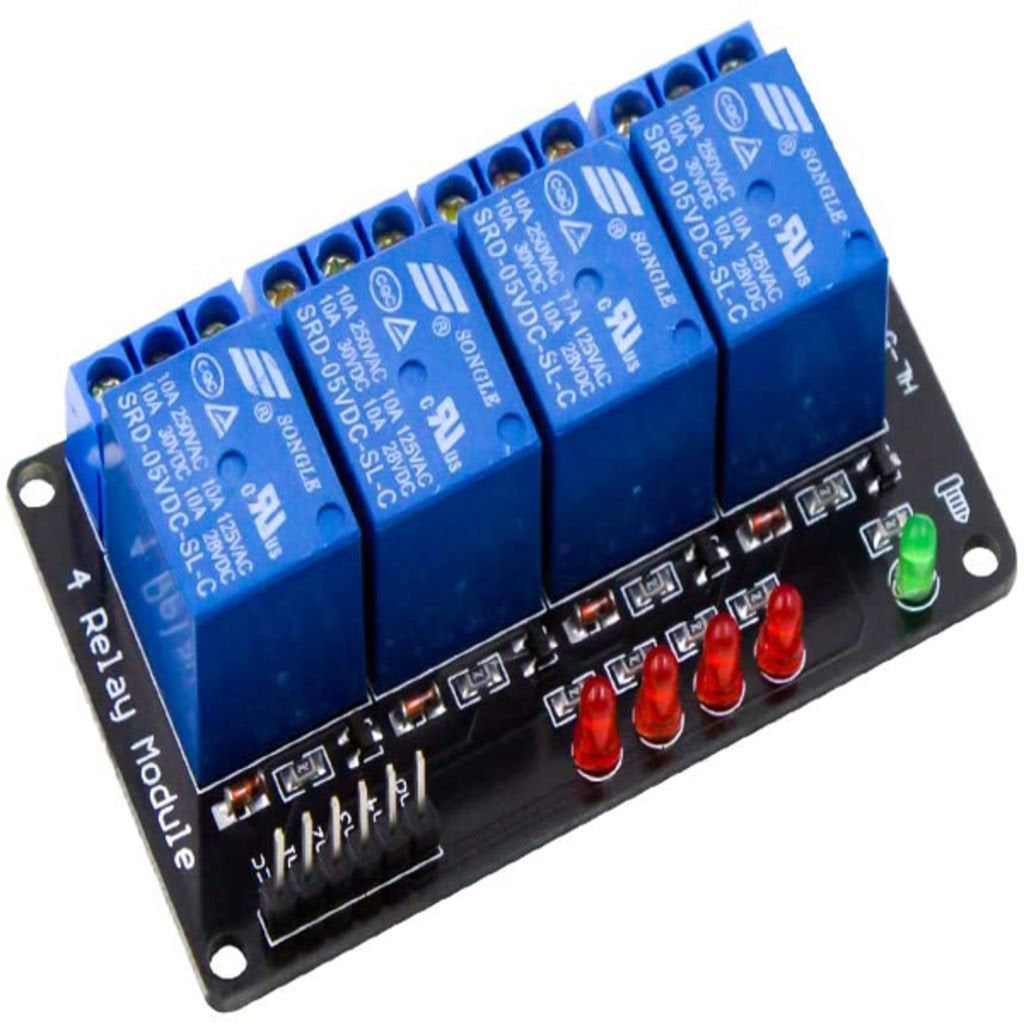

4 Channel Relay Module without light coupling 5V

Part no. 10050828

$4.00
Sold out
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

The 4 Channel Relay Module is a 5 V relay board with four independent relays, so one microcontroller can switch four separate circuits on and off. This version is without light coupling, meaning it has no optocouplers: each control input drives its relay through a transistor on the board. It is a simple, low-cost way to control lamps, fans, pumps and solenoids from an Arduino.

4 Channel Relay Module Specifications

  • Channels: 4 independent relays
  • Relay coil voltage: 5 V DC
  • Isolation: no optocoupler (without light coupling)
  • Control pins: VCC, GND and 4 signal inputs
  • Load terminals: COM, NO (normally open) and NC (normally closed) for each channel
  • Contact rating: printed on each relay body; check it before connecting a load

4 Channel Relay Module Applications

  • Switching lights, fans and small appliances
  • Watering systems with pumps and solenoid valves
  • Home automation and timer projects
  • Robotics and motor on/off control
  • Electronics classes and STEM labs

What's in the Box

  • 1 × 4-channel 5 V relay module

Tip: Use the NO terminal if a load should stay off until its relay is switched on. Because this board has no optocouplers, power it from a stable 5 V supply that shares a common ground with your microcontroller, and always disconnect mains power before wiring the load side.
