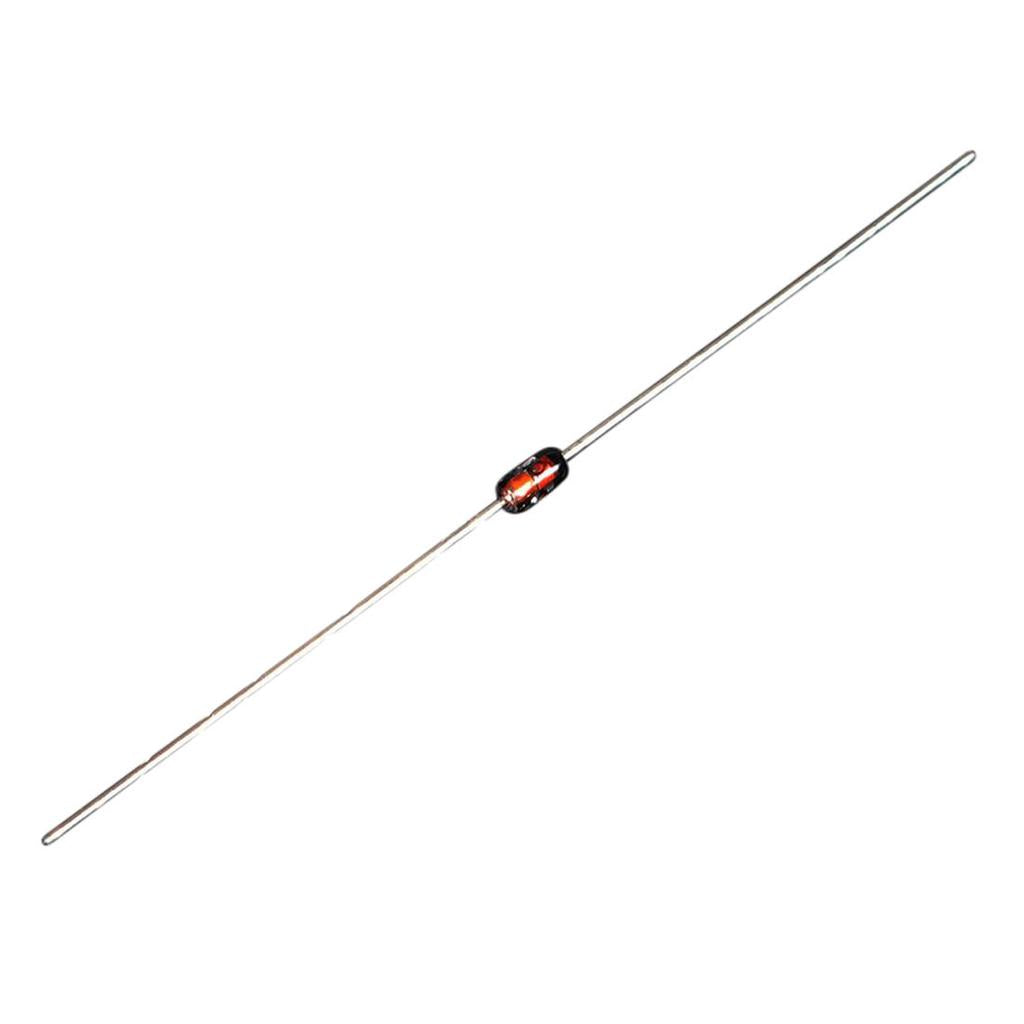

Zener Diode (51V) 0.5W 5pcs

The Zener Diode (51V) 0.5W is a through-hole Zener diode with a breakdown voltage of 51 V and a power rating of 0.5 W, sold in a pack of 5. Used in reverse bias with a series resistor, it holds the voltage across it at about 51 V, so it is a simple way to make a high-voltage reference or to clamp spikes on lines that normally stay below 51 V.

Zener Diode (51V) 0.5W Specifications

• Zener voltage: 51 V (nominal)
• Power rating: 0.5 W (500 mW)
• Maximum Zener current: about 9.8 mA in theory (0.5 W ÷ 51 V); stay well below this in practice
• Type: Zener diode, through-hole
• Polarity: cathode marked with a band
• Pack size: 5 pieces

Zener Diode (51V) 0.5W Applications

• Voltage references around 51 V
• Simple shunt regulators for low-current circuits
• Clamping voltage spikes on lines that normally stay below 51 V
• Overvoltage protection in power supply and battery monitoring circuits
• Electronics labs on diode characteristics

What's in the Box

• 5 × 51 V 0.5 W Zener diodes

Tip: Connect the cathode (band end) to the positive side so the diode is reverse biased, and always use a series resistor: R = (Vin − 51 V) ÷ I. For example, from 60 V at 5 mA use about 1.8 kΩ; the Zener then dissipates about 0.26 W, safely below 0.5 W.
