Crystal Oscillator 5MHz

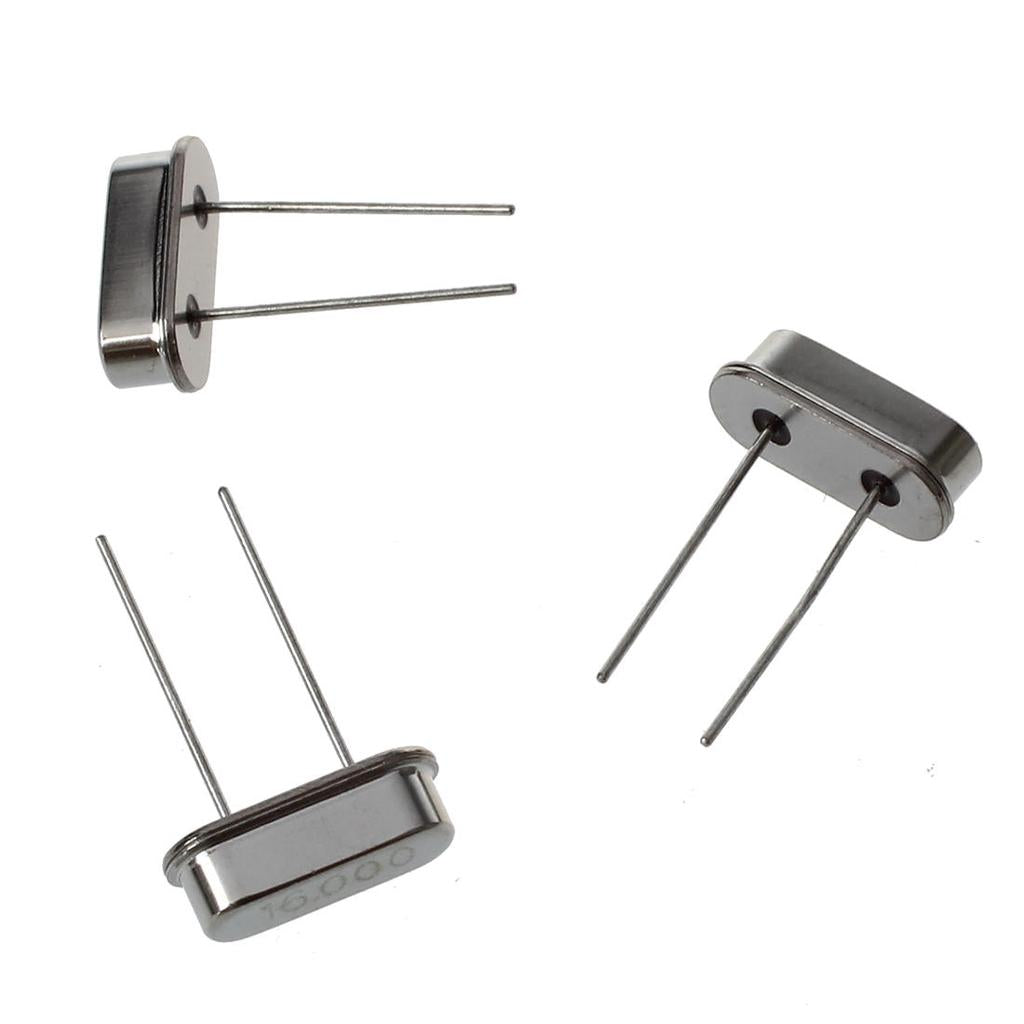

The Crystal Oscillator 5MHz is a quartz crystal that provides a stable 5 MHz frequency reference for microcontrollers, digital logic and test circuits. Connected to an oscillator circuit with two small load capacitors, it keeps timing far more accurate and stable than an RC oscillator. It is useful for custom microcontroller boards, frequency references and electronics experiments.

Crystal Oscillator 5MHz Specifications

• Frequency: 5 MHz
• Period: 200 ns per cycle
• Type: quartz crystal resonator
• Use: external clock or reference for oscillator circuits
• Polarity: none, it can be fitted either way round
• Quantity: 1 piece

Crystal Oscillator 5MHz Applications

• Clock source for PIC and AVR microcontrollers that accept an external crystal
• Frequency reference for counters, dividers and PLL circuits
• Crystal oscillators built with logic gates or transistors
• Timing in radio and communication experiments
• Repairing boards that use a 5 MHz crystal

What's in the Box

• 1 × 5 MHz crystal

Tip: Keep the crystal close to the oscillator pins and connect a capacitor of about 18–22 pF from each pin to ground. When you use it with a PIC microcontroller, select the HS oscillator mode, which is meant for crystals above 4 MHz.
