Ceramic Capacitor (683) 68nF 50V (5 pcs)

Part no. 10260364

$0.40
In stock
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

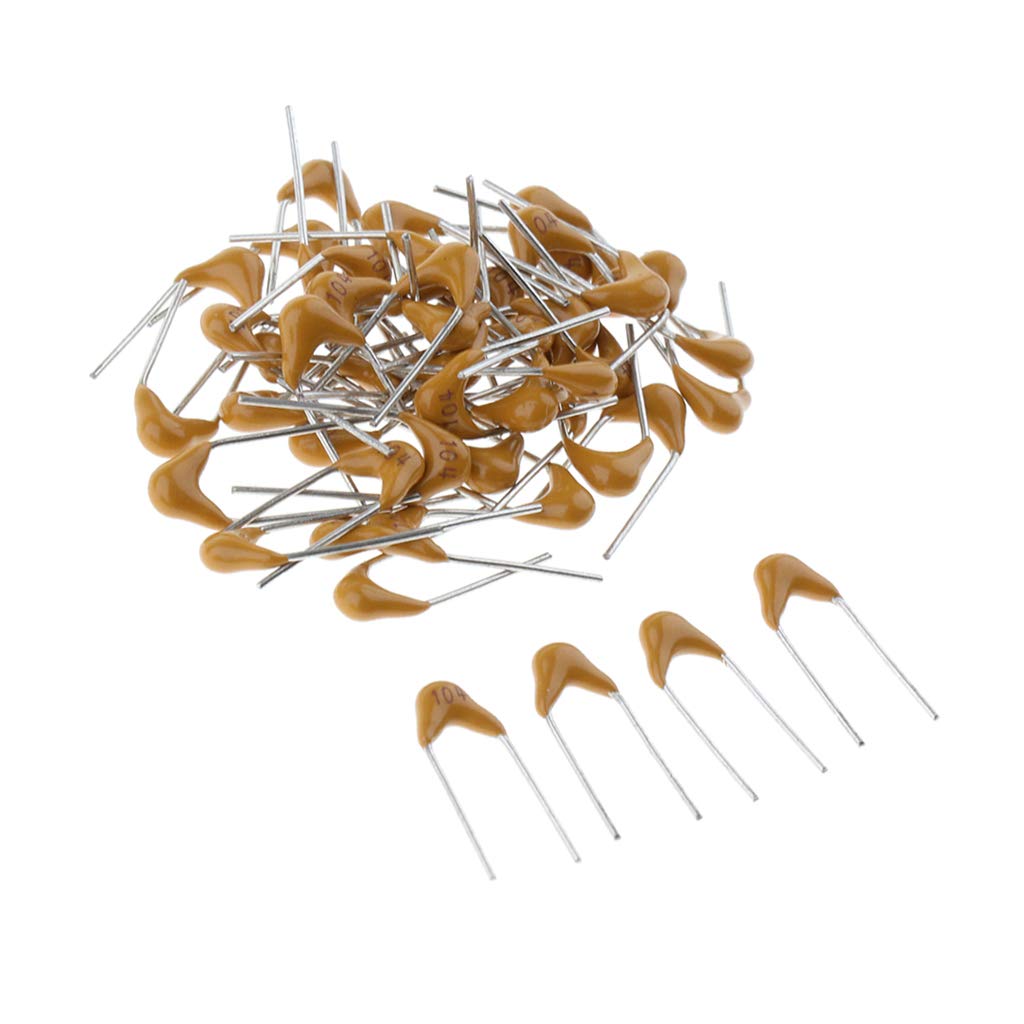

The Ceramic Capacitor (683) 68nF 50V pack contains five non-polarised ceramic capacitors with a capacitance of 68 nF (0.068 µF) and a voltage rating of 50 V. The code 683 printed on the body means 68 × 10³ pF. This mid-range value is used for RC filters, 555 timer circuits, button debouncing, audio coupling and filtering noise on supply and signal lines.

Ceramic Capacitor (683) 68nF 50V Specifications

  • Capacitance: 68 nF = 68,000 pF = 0.068 µF
  • Marking code: 683
  • Voltage rating: 50 V DC
  • Type: ceramic, non-polarised
  • Mounting: through-hole
  • Pack size: 5 pieces

Ceramic Capacitor (683) 68nF 50V Applications

  • RC low-pass and high-pass filters
  • Timing capacitor for 555 circuits (a 555 astable with two 10 kΩ resistors runs at about 700 Hz, an audible tone)
  • Debouncing push buttons with a pull-up resistor
  • Coupling and tone circuits in audio projects
  • Filtering noise on supply rails and sensor inputs

What's in the Box

  • 5 × 68 nF (683) 50 V ceramic capacitors

Tip: Ceramic capacitors have no polarity, so they can be fitted either way round. To read the code, the first two digits are the value and the third is the number of zeros in picofarads, so 683 = 68,000 pF = 68 nF. Keep the voltage below 50 V.
