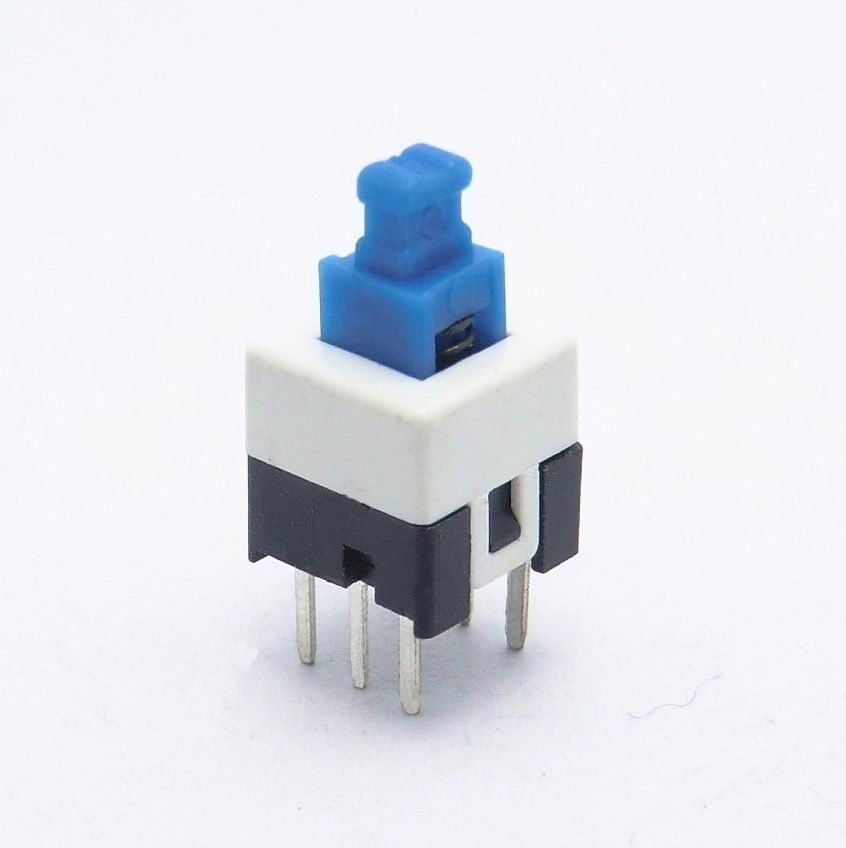

7x7mm Micro Switch Button (pack of 5) DPDT

The 7x7mm Micro Switch Button is a compact push switch with a 7 × 7 mm body and a DPDT (double pole, double throw) contact layout, sold in a pack of 5. One press changes over two separate circuits at the same time, which makes it useful for power and mode switching on small PCBs, toys, lamps and handheld devices.

7x7mm Micro Switch Button Specifications

• Body size: 7 × 7 mm
• Contacts: DPDT, double pole double throw
• Terminals: 6 pins, two rows of 3 (one row per pole)
• Mounting: through-hole, for PCB or perfboard
• Pack size: 5 pieces

7x7mm Micro Switch Button Applications

• Power on/off switches for small battery devices
• Selecting between two modes or two signal sources
• Switching two circuits together, such as power and an indicator LED
• Replacement switches for lamps, toys and remotes
• Arduino and electronics prototyping on perfboard

What's in the Box

• 5 × 7x7 mm DPDT micro push switches

Tip: In each row of 3 pins the middle pin is usually the common, connected to one outer pin when the button is up and to the other when it is pressed. Confirm the pairs with a multimeter in continuity mode before soldering.
