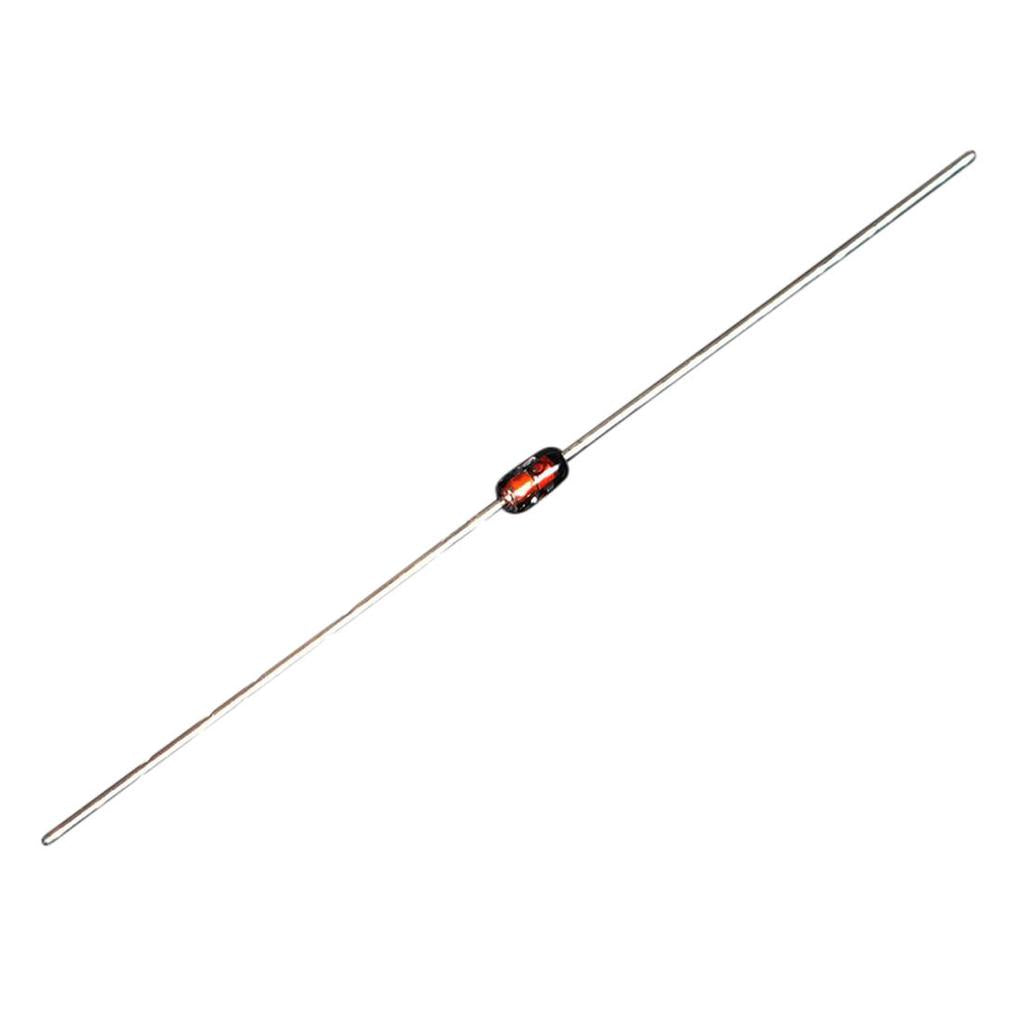

Zener Diode (8.2V) 0.5W 5pcs

The Zener Diode (8.2V) 0.5W is a through-hole Zener diode with a breakdown voltage of 8.2 V and a power rating of 0.5 W, sold in a pack of 5. Used in reverse bias with a series resistor, it holds the voltage across it at about 8.2 V, which makes it a simple way to build a voltage reference, a low-current regulator or overvoltage protection for an input.

Zener Diode (8.2V) 0.5W Specifications

• Zener voltage: 8.2 V (nominal)
• Power rating: 0.5 W (500 mW)
• Maximum Zener current: about 60 mA in theory (0.5 W ÷ 8.2 V); stay well below this in practice
• Type: Zener diode, through-hole
• Polarity: cathode marked with a band
• Pack size: 5 pieces

Zener Diode (8.2V) 0.5W Applications

• 8.2 V voltage references
• Simple shunt regulators for low-current circuits
• Clamping voltage spikes on signal and sensor lines
• Protecting inputs that must stay below about 8 V
• Electronics labs on diode characteristics

What's in the Box

• 5 × 8.2 V 0.5 W Zener diodes

Tip: Connect the cathode (band end) to the positive side so the diode is reverse biased, and always use a series resistor: R = (Vin − 8.2 V) ÷ I. For example, from 12 V at 10 mA use about 390 Ω, which dissipates about 0.04 W.
