8 Channel Solid State Relay Module
Part no. 10061701
- Pick up in Msaitbeh, Beirut
- Delivery across Lebanon
- Bulk and education pricing on request
Description

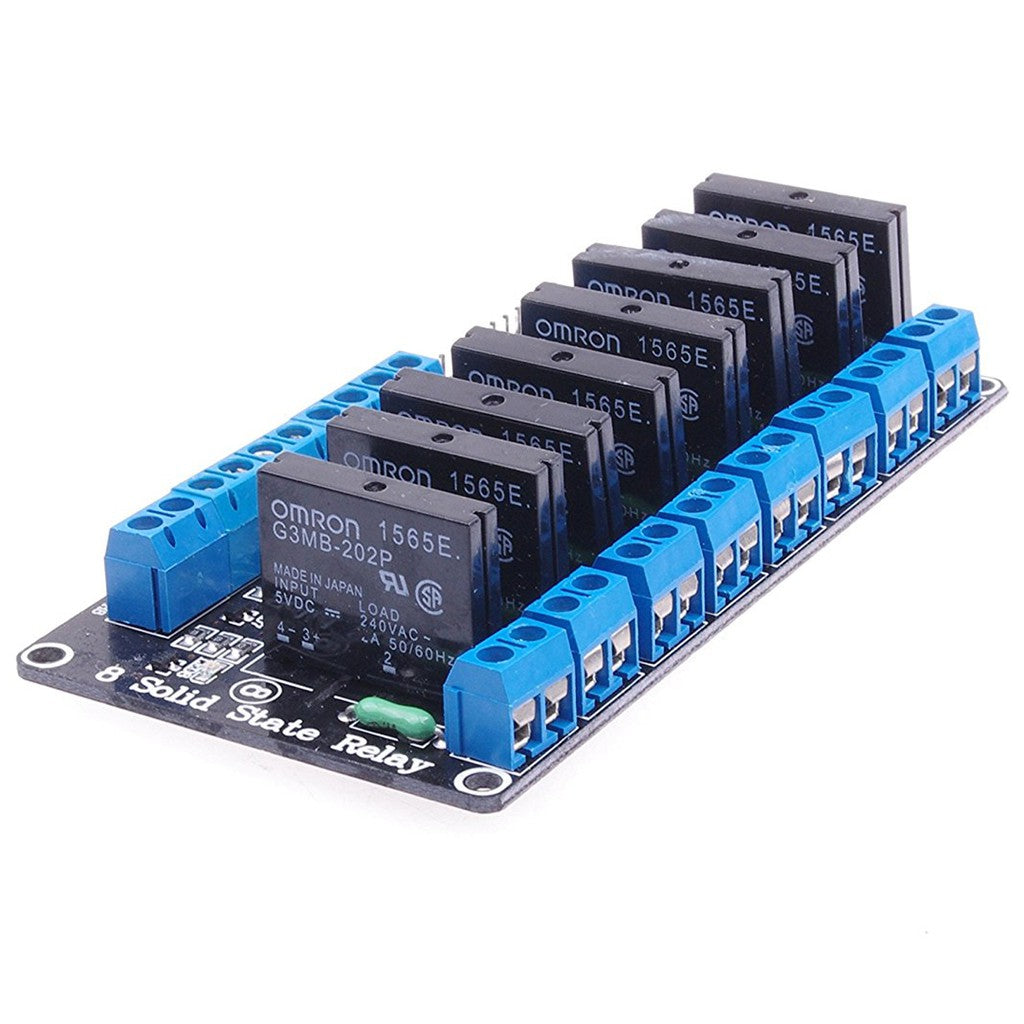

The 8 Channel Solid State Relay Module lets low-voltage control signals from an Arduino, ESP32 or other microcontroller switch up to eight separate mains loads. Each channel uses a solid-state relay (SSR) instead of a mechanical contact, so it switches silently, has no contacts to wear out and suits loads that are turned on and off often, such as lamps, heaters and fans in home automation and control panels.
8 Channel Solid State Relay Module Specifications
- Channels: 8, each controlled independently
- Relay type: solid-state relay (SSR), no moving parts
- Control: low-voltage DC signals from microcontroller pins
- Isolation: control side and load side are separated inside each SSR
- Load: within the voltage and current printed on the relays
- Operation: silent, no clicking
8 Channel Solid State Relay Module Applications
- Lighting control for rooms, signs and displays
- Heater, thermostat and incubator control
- Fans and ventilation control
- Home automation and smart switch panels
- Timers and sequencers that switch loads often
What's in the Box
- 1 × 8-channel solid state relay module
Tip: Many SSR modules of this kind switch AC loads only and cannot turn off a DC load, so check the rating printed on the relays and stay well below it. Wire the load side only with the mains switched off and keep the module in a closed enclosure.
