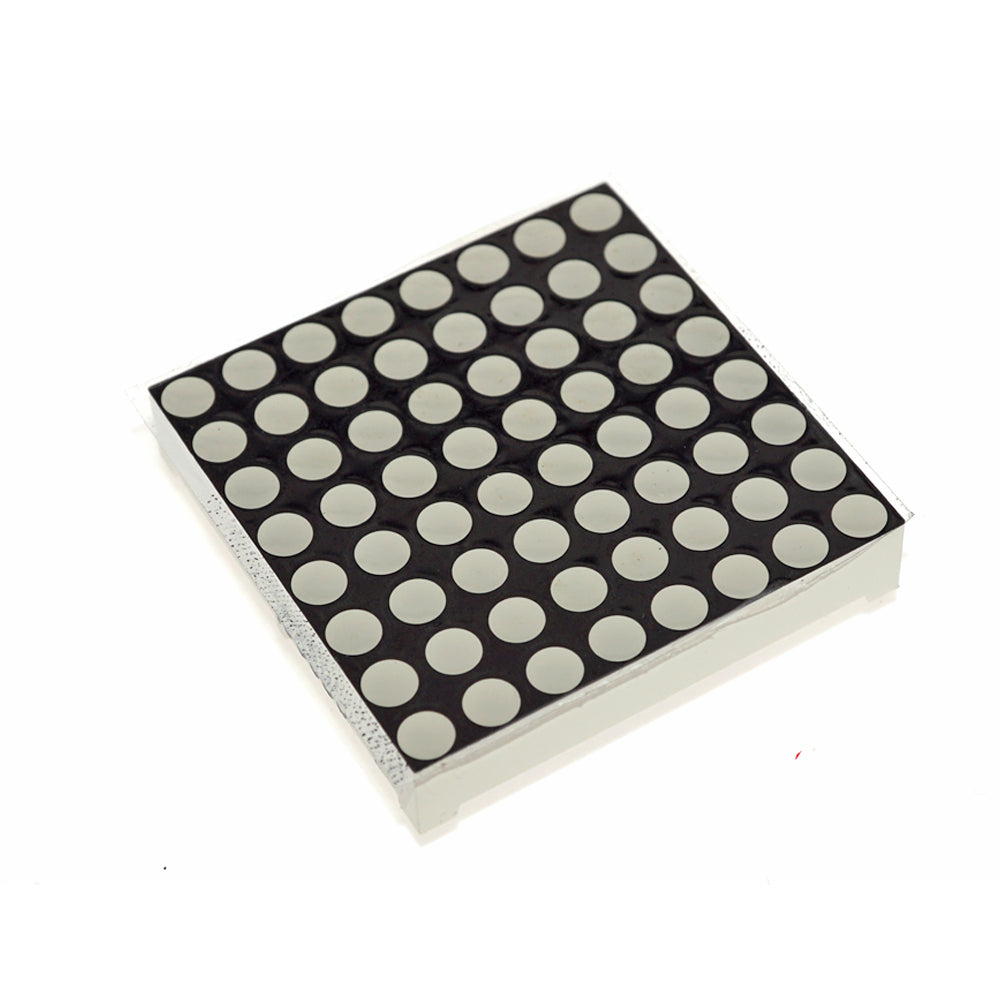

8x8 Red 64 LED Dot Matrix 16-Pin 3.2x3.2cm Red CA 1088BS

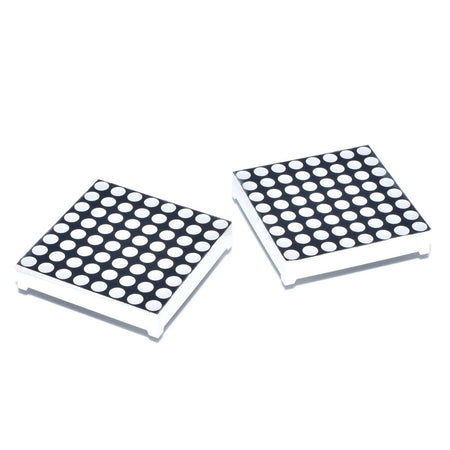

The 8x8 Red 64 LED Dot Matrix is a 1088BS display with 64 red LEDs arranged in 8 rows and 8 columns in a compact 3.2 × 3.2 cm package. It has 16 pins, one for each row and column, and a common anode (CA) layout. Use it to show letters, numbers, icons and simple animations, alone or chained with others for scrolling text displays.

8x8 Red 64 LED Dot Matrix Specifications

• Model: 1088BS
• Matrix: 8 × 8, 64 LEDs
• Colour: red
• Configuration: common anode (CA)
• Pins: 16 (8 rows, 8 columns)
• Size: 3.2 × 3.2 cm (32 × 32 mm)

8x8 Red 64 LED Dot Matrix Applications

• Scrolling text and message boards
• Icons, emojis and animations on Arduino and ESP32
• Simple games such as Snake and Tetris
• Learning multiplexing and shift registers in electronics classes

What's in the Box

• 1 × 8x8 red LED dot matrix, 1088BS

Tip: To show a pattern, the rows are lit one after another very quickly (multiplexing). A MAX7219 driver or 74HC595 shift registers with current-limiting resistors save microcontroller pins; the pin numbers do not follow the row order, so check the 1088BS pinout before wiring.
