AD620 D920

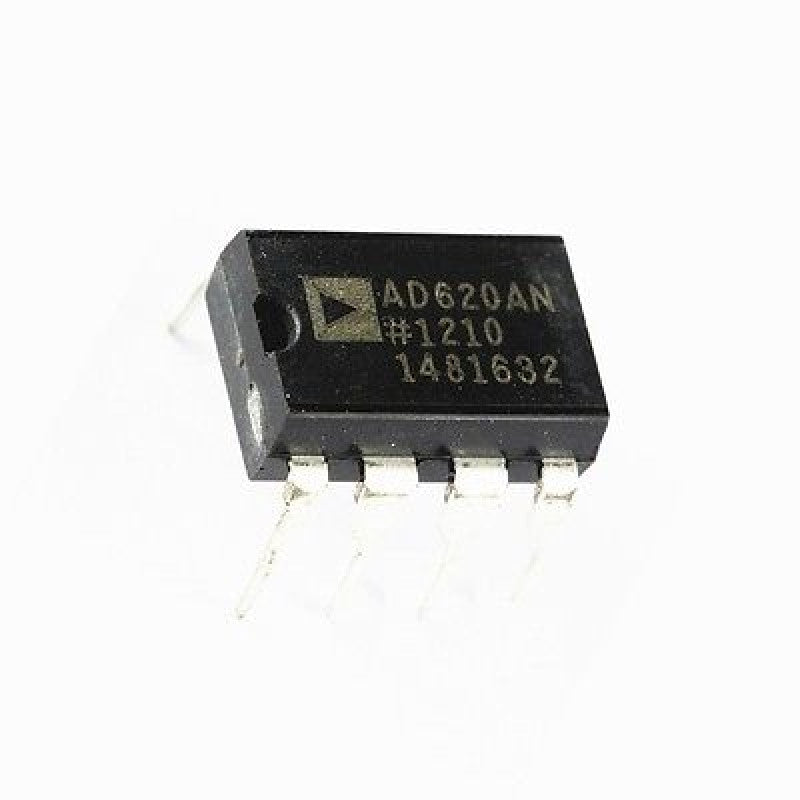

The AD620 is a low-power instrumentation amplifier IC in an 8-pin package. A single external resistor sets its gain anywhere from 1 to 10,000, and its high common-mode rejection lets it amplify the tiny difference between two inputs while ignoring noise that appears on both. It is widely used with strain gauges, load cells, pressure sensors, thermocouples and ECG electrodes.

AD620 Specifications

• Type: instrumentation amplifier (differential input, single-ended output)
• Gain: 1 to 10,000, set by one resistor (RG)
• Gain formula: G = 49.4 kΩ / RG + 1
• Supply voltage: ±2.3 V to ±18 V
• Supply current: 1.3 mA max
• Pins: 8 (RG on pins 1 and 8, −IN pin 2, +IN pin 3, −VS pin 4, REF pin 5, OUTPUT pin 6, +VS pin 7)

AD620 Applications

• Load cell and strain gauge amplifiers for weighing scales
• Bridge pressure and force sensors
• ECG, EMG and other biomedical signal front ends
• Thermocouple and low-level sensor amplifiers
• Data acquisition and lab instruments

What's in the Box

• 1 × AD620 instrumentation amplifier IC

Tip: For a gain of 100, use an RG of about 499 Ω (49.4 kΩ / 99). In single-supply circuits, bias REF (pin 5) to mid-supply so the output can swing both ways, and decouple both supply pins with 100 nF capacitors.
