BF422

Part no. 10370216

$0.15
In stock
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

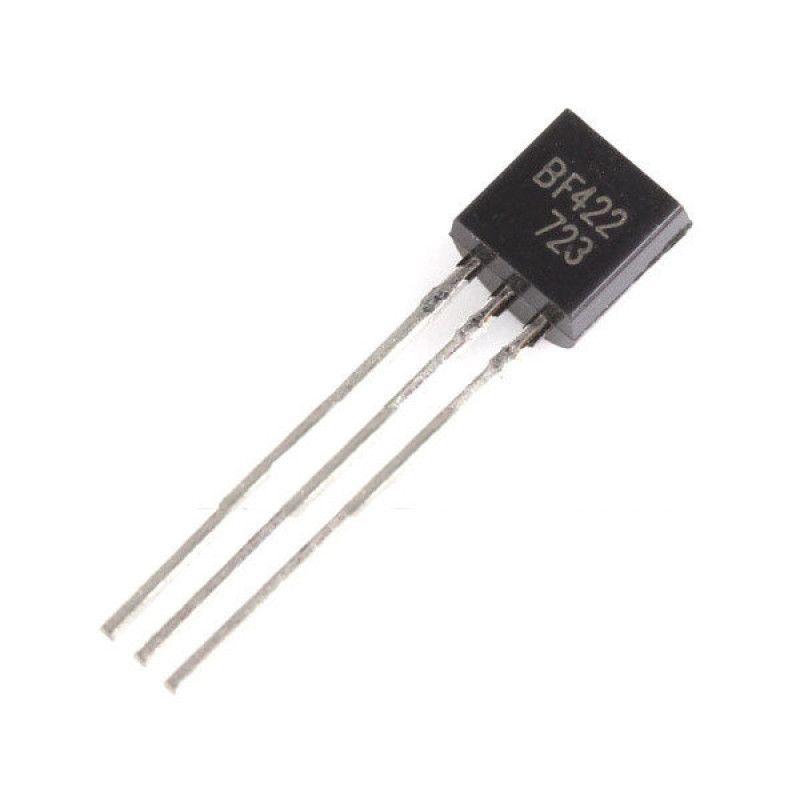

The BF422 is an NPN high-voltage bipolar junction transistor in a TO-92 through-hole package. It is rated for a collector-emitter voltage of 250 V at up to 50 mA, so it is used where an ordinary small-signal transistor such as the 2N2222 or BC547 cannot handle the voltage, for example in video output stages, high-voltage switching and repairs of older TV and monitor boards. Its PNP complement is the BF423.

BF422 Specifications

  • Type: NPN bipolar junction transistor (BJT)
  • Package: TO-92, through-hole
  • Collector-emitter voltage (VCEO): 250 V
  • Collector current (IC): 50 mA
  • Power dissipation: 830 mW
  • Transition frequency (fT): 60 MHz
  • Pack size: 1 piece

BF422 Applications

  • Video output and other high-voltage amplifier stages
  • Switching low-current high-voltage loads such as neon lamps and nixie tube cathodes
  • Level shifting from logic signals to high-voltage circuits
  • Replacement part in TV and monitor repairs
  • Complementary stages together with the PNP BF423

What's in the Box

  • 1 × BF422 NPN transistor

Tip: Check the pin order in the datasheet for the marking on your part before soldering, because TO-92 pinouts differ between transistor types. Circuits running at 100 V or more are dangerous: discharge capacitors before touching the board and keep the collector current below 50 mA.
