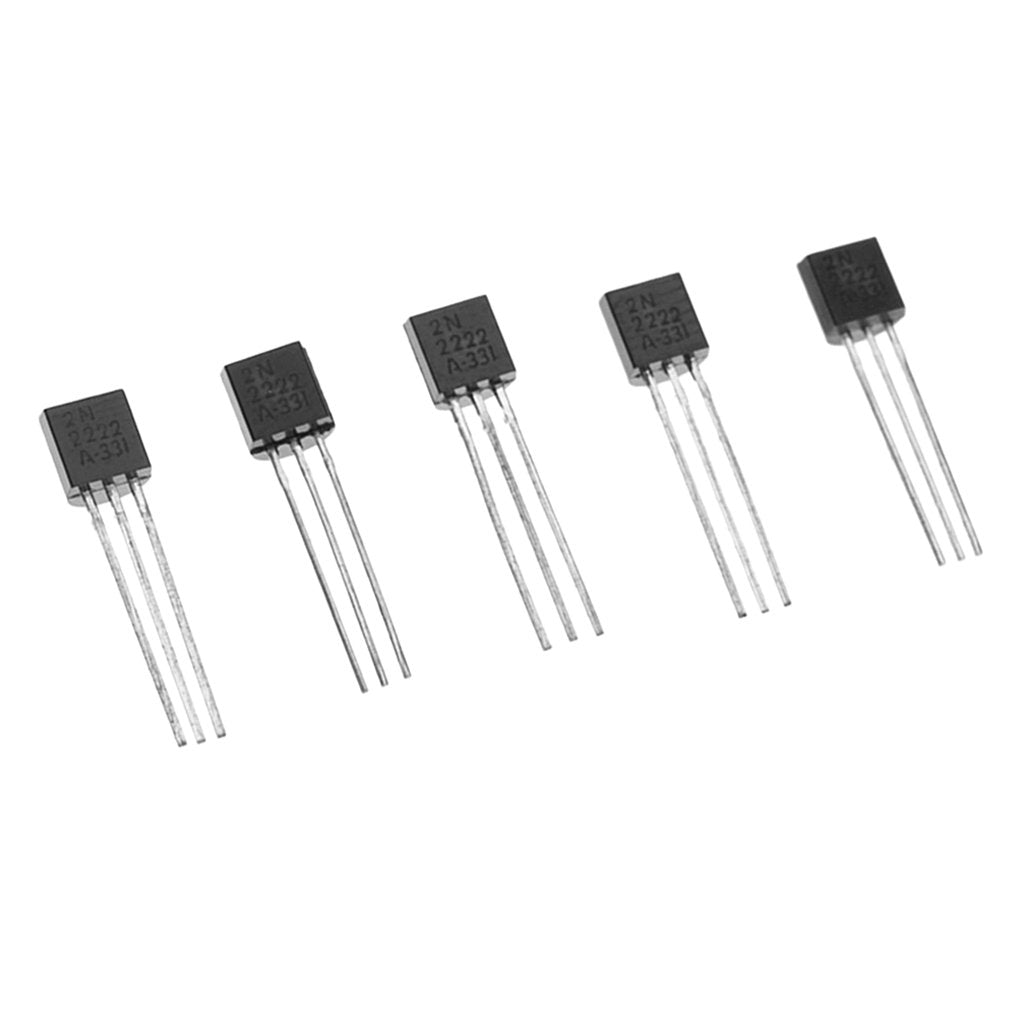

2N2222 5pcs

The 2N2222 is a general-purpose NPN bipolar junction transistor and one of the most popular small-signal transistors in electronics. This pack contains 5 pieces. With a collector current of up to 600 mA it can switch relays, LEDs, buzzers and small motors from an Arduino, ESP32 or Raspberry Pi pin, and it also works well as a small-signal amplifier.

2N2222 Specifications

• Type: NPN bipolar junction transistor (BJT)
• Package: TO-92, through-hole
• Collector-emitter voltage (VCEO): 30 V (2N2222), 40 V (2N2222A)
• Collector current (IC): up to 600 mA
• Power dissipation: 625 mW (TO-92)
• DC current gain (hFE): 100–300 at 150 mA
• Transition frequency (fT): about 250–300 MHz
• Pack size: 5 pieces

2N2222 Applications

• Driving relays, LEDs, buzzers and small DC motors from microcontroller pins
• Audio and small-signal amplification
• Logic level shifting and signal inversion
• Oscillator, timer and sensor interface circuits
• Electronics education and STEM labs

What's in the Box

• 5 × 2N2222 NPN transistors

Tip: Always use a base resistor (1 kΩ is a good start from a 5 V pin) and fit a flyback diode such as a 1N4007 across relay or motor coils. TO-92 versions differ in pin order (PN2222A is E-B-C, P2N2222A is C-B-E), so check the datasheet for the marking on your part.
