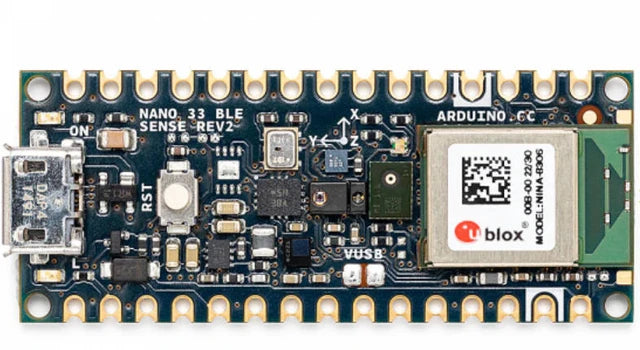

Arduino Nano33 BLE sense NRF52840 Processor BLE, AI enabled , multiple on board sensors finger size arduino and python supoort

The Arduino Nano33 BLE sense NRF52840 board, officially the Arduino Nano 33 BLE Sense, packs a Nordic nRF52840 processor with Bluetooth Low Energy and a set of onboard sensors into the small Nano form factor. It can run machine learning models with TensorFlow Lite for Microcontrollers and is programmed in the Arduino IDE or in MicroPython, which makes it ideal for wearables, smart sensors and AI-at-the-edge projects.

Arduino Nano33 BLE sense NRF52840 Specifications

• Processor: Nordic nRF52840, 32-bit Arm Cortex-M4F at 64 MHz
• Memory: 1 MB flash, 256 KB SRAM
• Wireless: Bluetooth Low Energy (Bluetooth 5) through a u-blox NINA-B306 module
• Onboard sensors: 9-axis IMU (accelerometer, gyroscope, magnetometer), temperature and humidity, barometric pressure, digital microphone, gesture, proximity, light and colour
• I/O: 14 digital pins, 8 analog inputs, UART, SPI, I2C and PWM
• Logic level: 3.3 V (pins are not 5 V tolerant)
• USB: micro-USB
• Size: 45 × 18 mm

Arduino Nano33 BLE sense NRF52840 Applications

• TinyML projects such as keyword spotting and gesture recognition
• Wearables and motion or fitness trackers
• Bluetooth sensor nodes for phones and IoT gateways
• Indoor climate and environment monitoring
• University and STEM courses on embedded AI

What's in the Box

• 1 × Arduino Nano 33 BLE Sense board

Tip: Install the Arduino Mbed OS Nano Boards package in the Boards Manager before uploading, and double-tap the reset button to enter bootloader mode if an upload fails. Power external sensors from the 3.3 V pin and keep all signals at 3.3 V.
