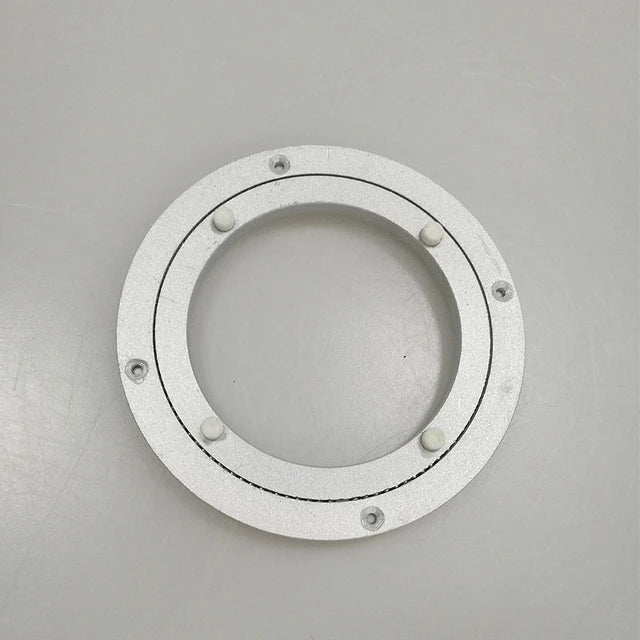

Bearing ED:120mm, ID:80mm T:9mm

The Bearing ED:120mm, ID:80mm T:9mm is a slim, large-bore bearing with a 120 mm outer diameter, an 80 mm inner diameter and a thickness of only 9 mm. The wide centre opening and low profile make it useful where a large shaft, hub or cable passage has to turn inside a compact space, such as rotating bases, turntables and robot joints.

Bearing ED:120mm, ID:80mm T:9mm Specifications

• Outer diameter (ED): 120 mm
• Inner diameter (ID, bore): 80 mm
• Thickness (T): 9 mm
• Ring cross-section: 20 mm per side, (120 − 80) / 2
• Quantity: 1 bearing

Bearing ED:120mm, ID:80mm T:9mm Applications

• Rotating platforms, turntables and display stands
• Robot bases and large rotary joints
• Camera and sensor pan bases
• Replacing a worn bearing of the same 80 × 120 × 9 mm size in machines and fixtures
• DIY mechanical, CNC and 3D-printed projects

What's in the Box

• 1 × bearing, 120 mm OD × 80 mm ID × 9 mm

Tip: Measure before ordering: the shaft or hub should be 80 mm and the housing bore 120 mm for a proper fit. When pressing the bearing in place, push only on the ring you are fitting (the inner ring onto a shaft, the outer ring into a housing) so the force does not pass through the rolling elements.
