Blynk Board ESP8266 Sparkfun WRL13794

Part no. 10450130

$52.00
In stock
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

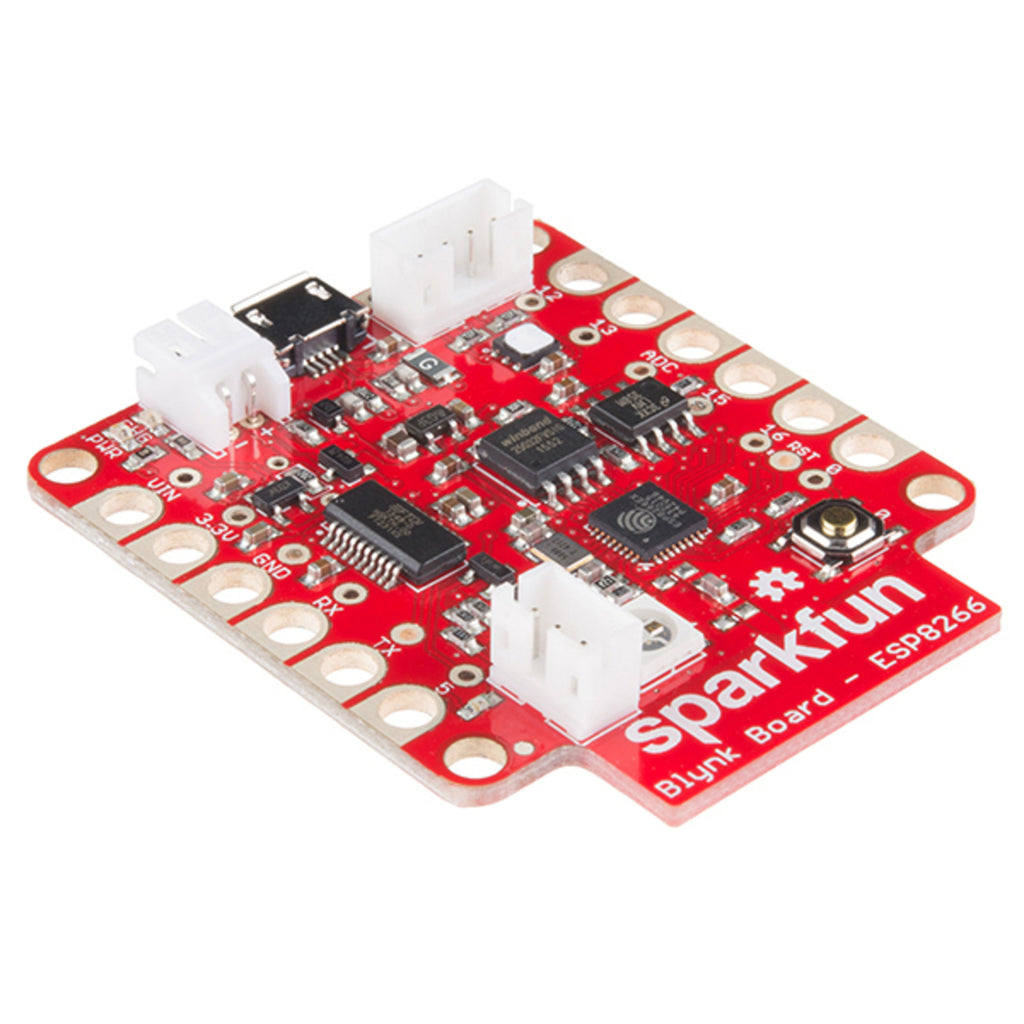

The Blynk Board ESP8266 (SparkFun WRL-13794) is a Wi-Fi development board built around the ESP8266 and designed to work with the Blynk app, which lets you control the board and read its sensors from a phone. It is a quick way into Internet of Things (IoT) projects, and it can also be programmed from the Arduino IDE like other ESP8266 boards.

Blynk Board ESP8266 Specifications

  • Wi-Fi chip: ESP8266, 2.4 GHz Wi-Fi
  • Logic level: 3.3 V
  • On-board sensor: Si7021 temperature and humidity sensor
  • On-board LED: WS2812 addressable RGB LED
  • Power: micro-USB, or a single-cell LiPo battery with on-board charging
  • Connections: large pads that accept alligator clips
  • Part number: SparkFun WRL-13794

Blynk Board ESP8266 Applications

  • Phone-controlled lights, relays and small appliances
  • Temperature and humidity monitoring over Wi-Fi
  • Learning IoT and app-based control in class
  • Home automation prototypes

What's in the Box

  • 1 × Blynk Board ESP8266

Tip: The ESP8266 runs at 3.3 V, so do not feed 5 V signals into its pins. The Blynk app and cloud have changed since this board was released, so follow Blynk's current setup guide, or program the board directly from the Arduino IDE with the ESP8266 board package.
