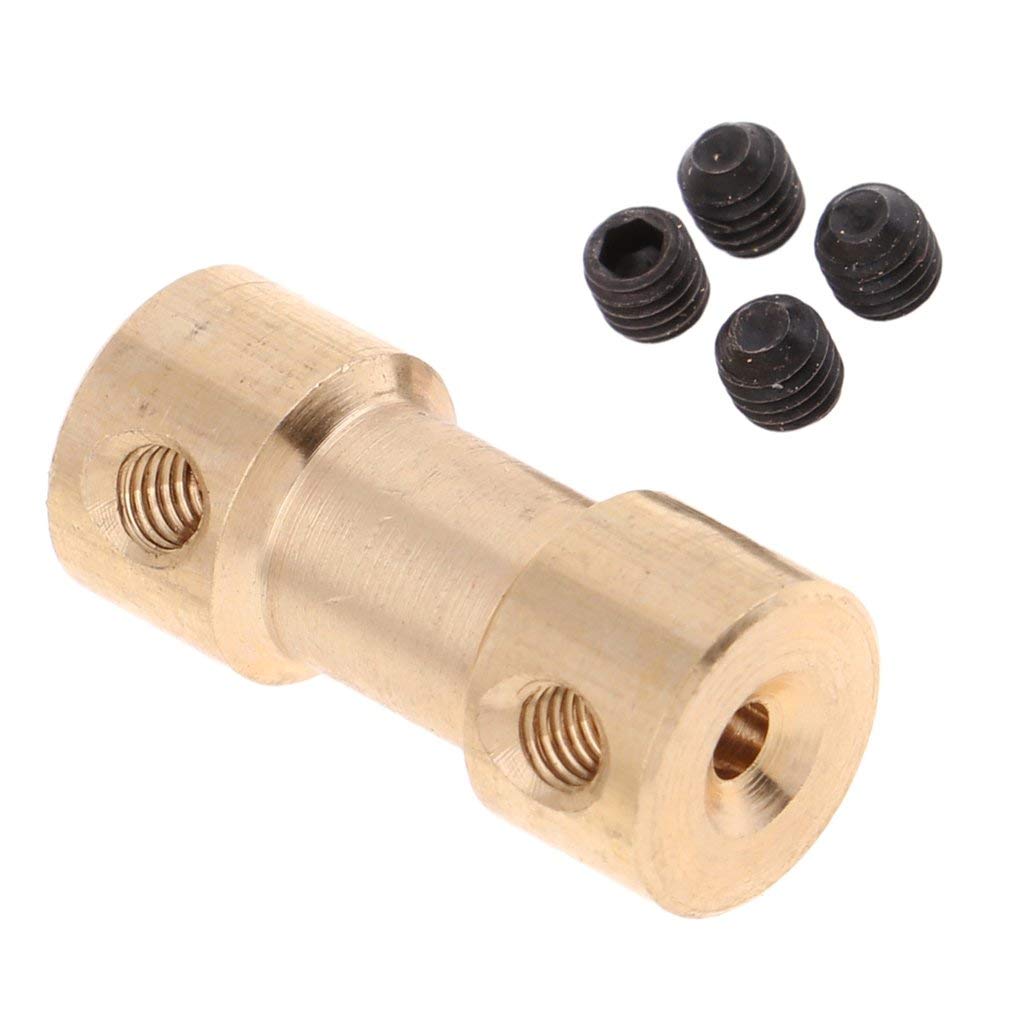

Brass Coupler (2-3.17mm)

The Brass Coupler (2-3.17mm) is a small rigid shaft coupler made of brass with a 2 mm bore on one end and a 3.17 mm (1/8 in) bore on the other. It connects a small motor with a 2 mm shaft to a 1/8 in drive shaft, axle or pulley, with screws on each side clamping the shafts in place. It suits RC boats and models, small robots and DIY mechanisms.

Brass Coupler (2-3.17mm) Specifications

• Material: brass
• Bore sizes: 2 mm on one end, 3.17 mm (1/8 in) on the other
• Type: rigid shaft coupler
• Fixing: screws tighten onto each shaft
• Quantity: 1 coupler

Brass Coupler (2-3.17mm) Applications

• Connecting a 2 mm motor shaft to a 1/8 in shaft
• Drive trains in RC boats, cars and models
• Fitting imperial-size gears and pulleys to small metric motors
• Robotics and DIY mechanisms

What's in the Box

• 1 × brass coupler, 2 mm to 3.17 mm

Tip: Rigid couplers need the two shafts to be well aligned, otherwise the motor bearings wear and the drive vibrates; switch to a flexible coupler if alignment is difficult. Tighten the screws onto the flat of the shaft if there is one, gently on the thin 2 mm side.
