Brass Coupler (2-4mm)

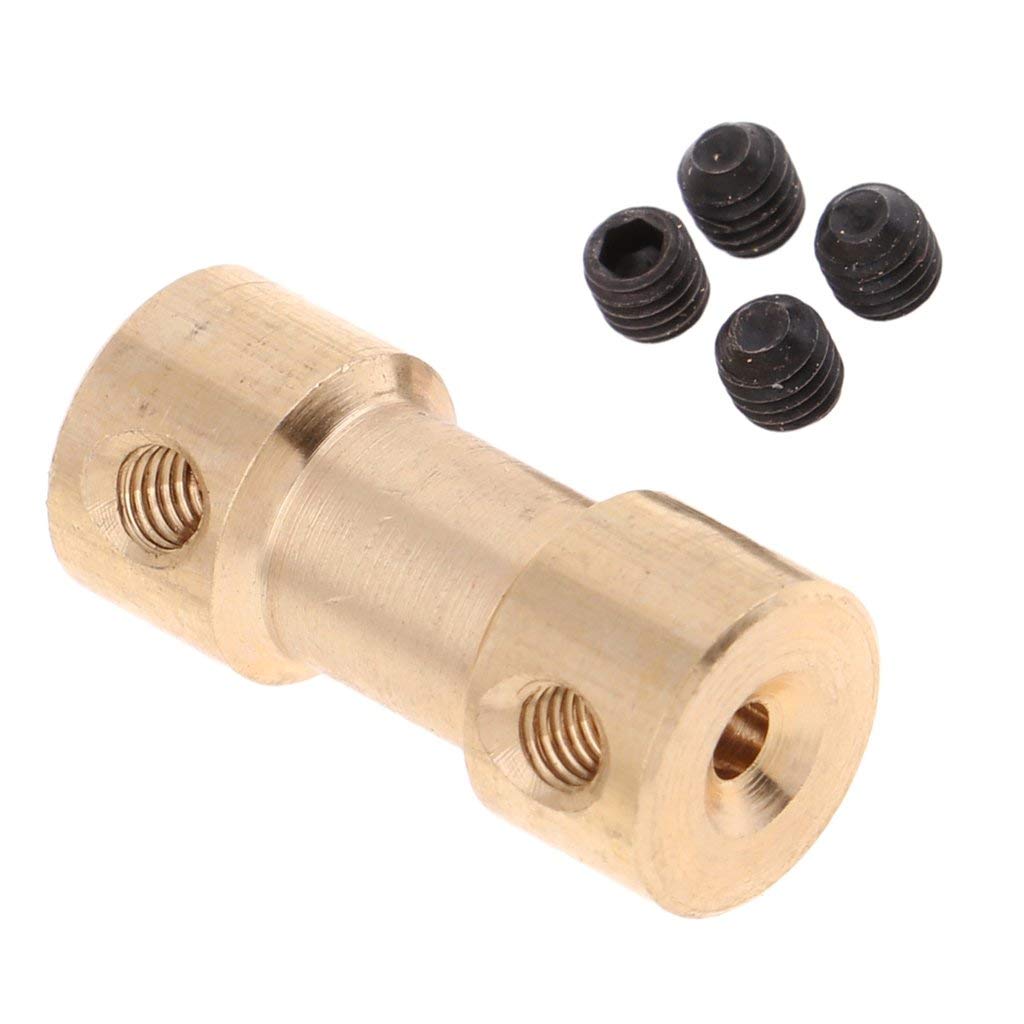

The Brass Coupler (2-4mm) is a small rigid shaft coupler made of brass with a 2 mm bore on one end and a 4 mm bore on the other. It connects a small motor with a 2 mm shaft to a larger 4 mm rod, axle, wheel or pulley, with screws on each side clamping the shafts in place. It is a simple way to fit bigger drive parts to micro motors in robots, RC models and DIY mechanisms.

Brass Coupler (2-4mm) Specifications

• Material: brass
• Bore sizes: 2 mm on one end, 4 mm on the other
• Type: rigid shaft coupler
• Fixing: screws tighten onto each shaft
• Quantity: 1 coupler

Brass Coupler (2-4mm) Applications

• Connecting a 2 mm motor shaft to a 4 mm rod or axle
• Fitting wheels, gears and pulleys made for 4 mm shafts to small motors
• Drive trains in RC boats, cars and models
• Robotics and DIY mechanisms

What's in the Box

• 1 × brass coupler, 2 mm to 4 mm

Tip: Rigid couplers need the two shafts to be well aligned, otherwise the motor bearings wear and the drive vibrates. Tighten the screw on the 2 mm side gently, as small motor shafts are easy to bend, and use thread locker where there is a lot of vibration.
