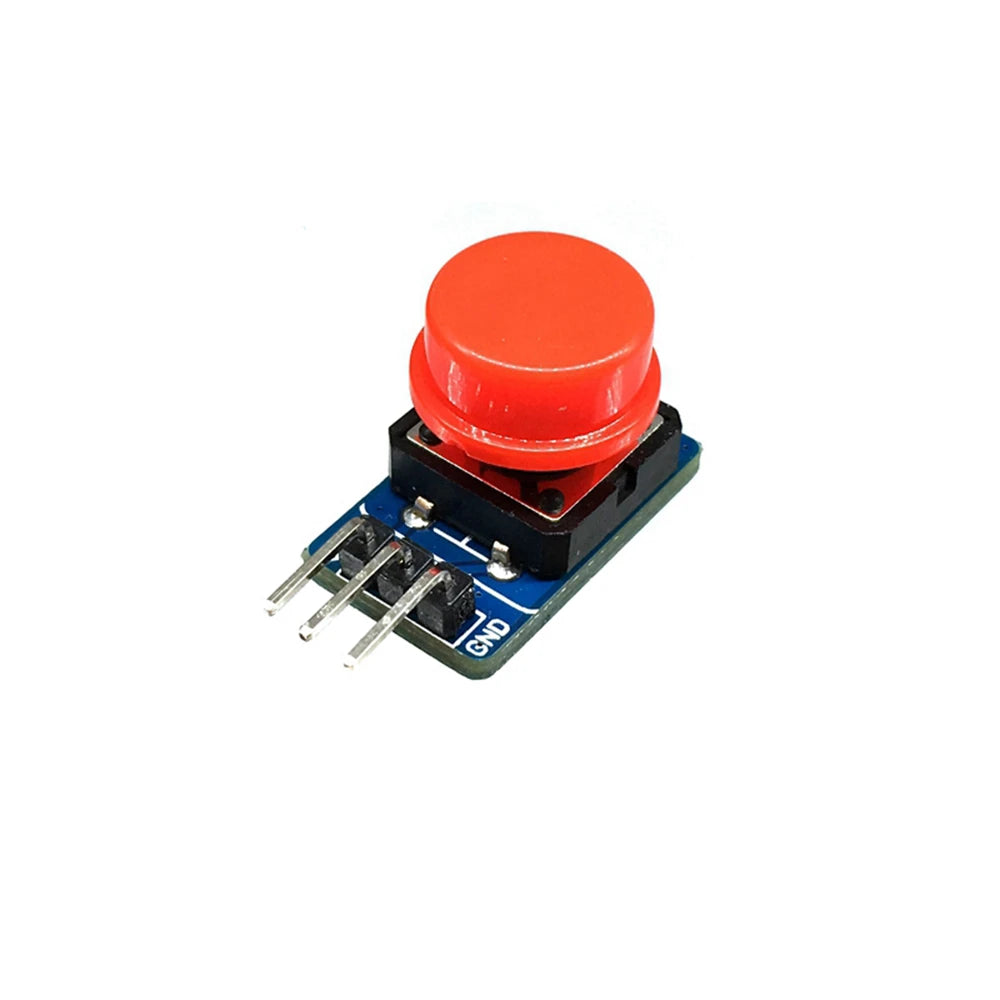

Button Module With Cap

The Button Module With Cap is a large tactile push button mounted on a small breakout board and topped with a cap that is easy to press. The module gives a digital HIGH signal while the button is pressed, so it connects straight to a digital input of an Arduino, ESP32 or other microcontroller without extra resistors. It is ideal for user inputs, game controls and classroom projects.

Button Module With Cap Specifications

• Type: momentary tactile push button with cap
• Output: digital, HIGH (high level) while pressed
• Connections: VCC, GND and signal (OUT)
• Logic: works with 3.3 V and 5 V boards

Button Module With Cap Applications

• Start, stop and reset buttons for Arduino and ESP32 projects
• Game controllers and quiz buzzers
• Doorbells, counters and menu navigation
• Robotics and STEM lessons
• Prototyping user interfaces

What's in the Box

• 1 × button module with cap

Tip: Power the module from the same voltage as your board, 5 V for an Arduino Uno or 3.3 V for an ESP32, and read the signal pin with digitalRead(). Add a short software debounce of about 20–50 ms so that one press is not counted several times.
