CAN-BUS Shield Sparkfun DEV13262

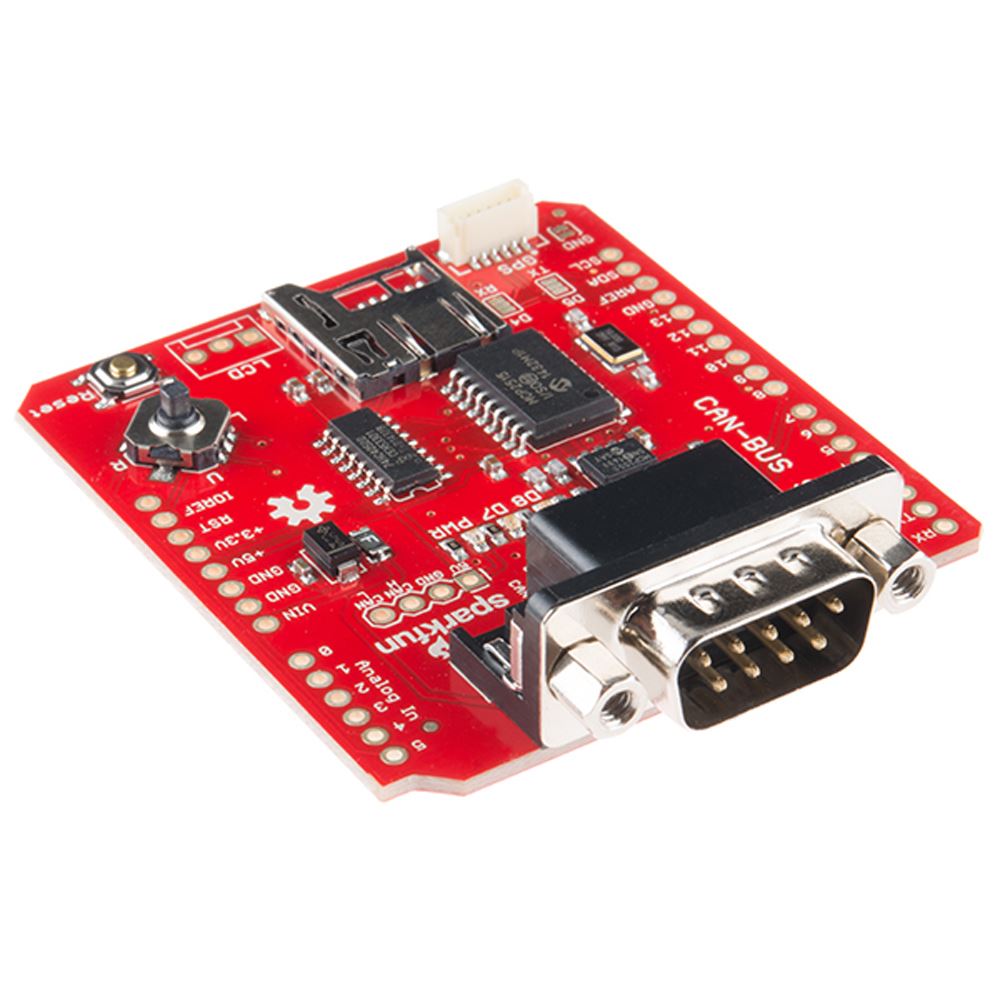

The CAN-BUS Shield (SparkFun DEV-13262) lets an Arduino talk on a Controller Area Network (CAN) bus, the network used in cars, trucks and many industrial machines. It combines the Microchip MCP2515 CAN controller and MCP2551 CAN transceiver with a DB9 connector, so you can read vehicle data through the OBD-II port with a suitable cable, log it and build your own car diagnostics projects.

CAN-BUS Shield Specifications

• CAN controller: MCP2515, CAN 2.0B, up to 1 Mb/s, SPI interface
• CAN transceiver: MCP2551
• Bus connector: DB9
• Storage: microSD card socket for data logging
• Extras: joystick and connectors for a serial LCD and a GPS module
• Form factor: Arduino Uno shield
• Part number: SparkFun DEV-13262

CAN-BUS Shield Applications

• Reading OBD-II engine and sensor data from cars
• Logging CAN traffic to a microSD card
• Custom dashboards and gauges for vehicles
• Industrial CAN networks and learning the CAN protocol

What's in the Box

• 1 × CAN-BUS shield

Tip: A CAN bus needs 120 Ω termination at each end, so check whether your network is already terminated before connecting. To connect to a car you need a DB9 to OBD-II cable, which is sold separately.
