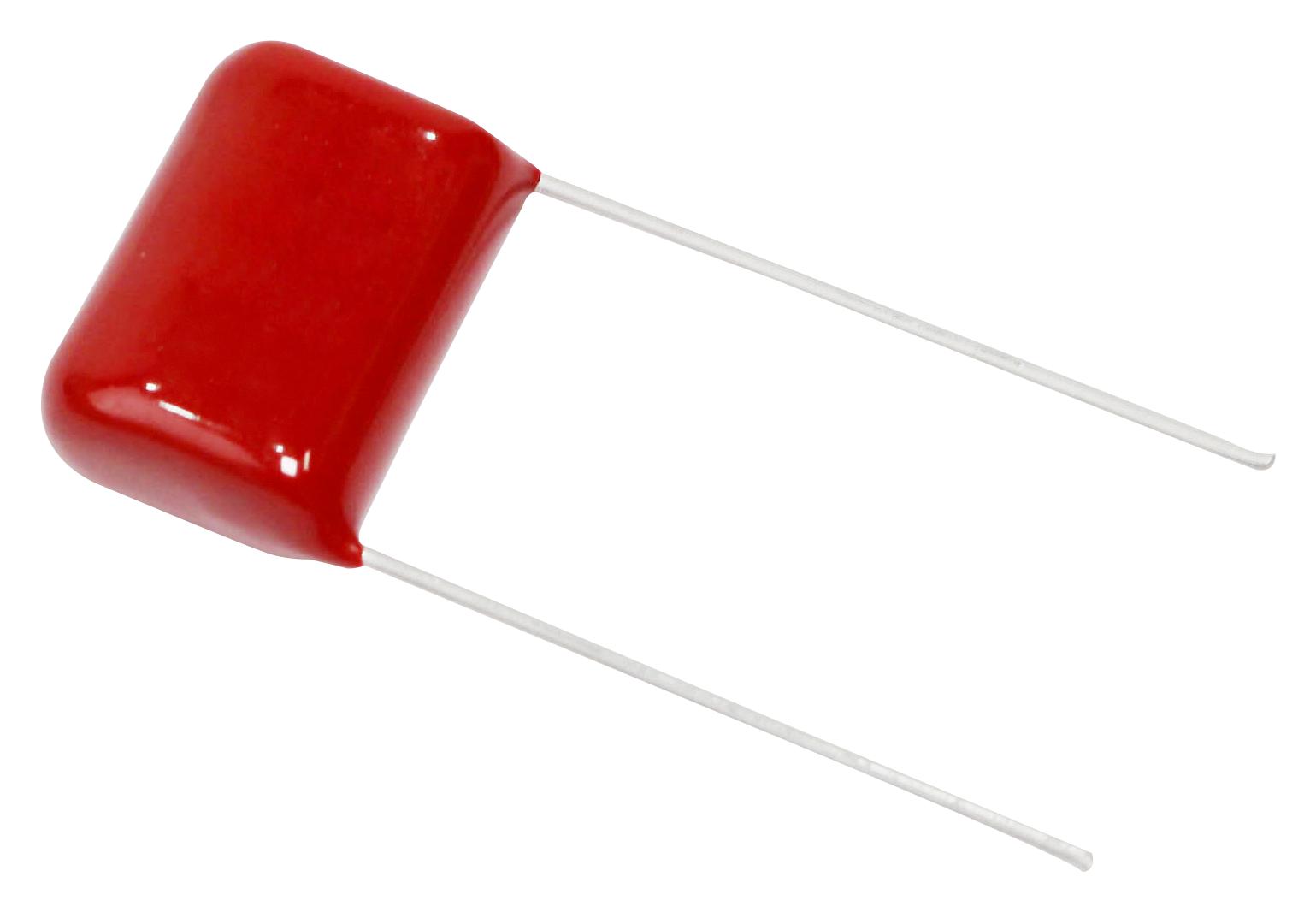

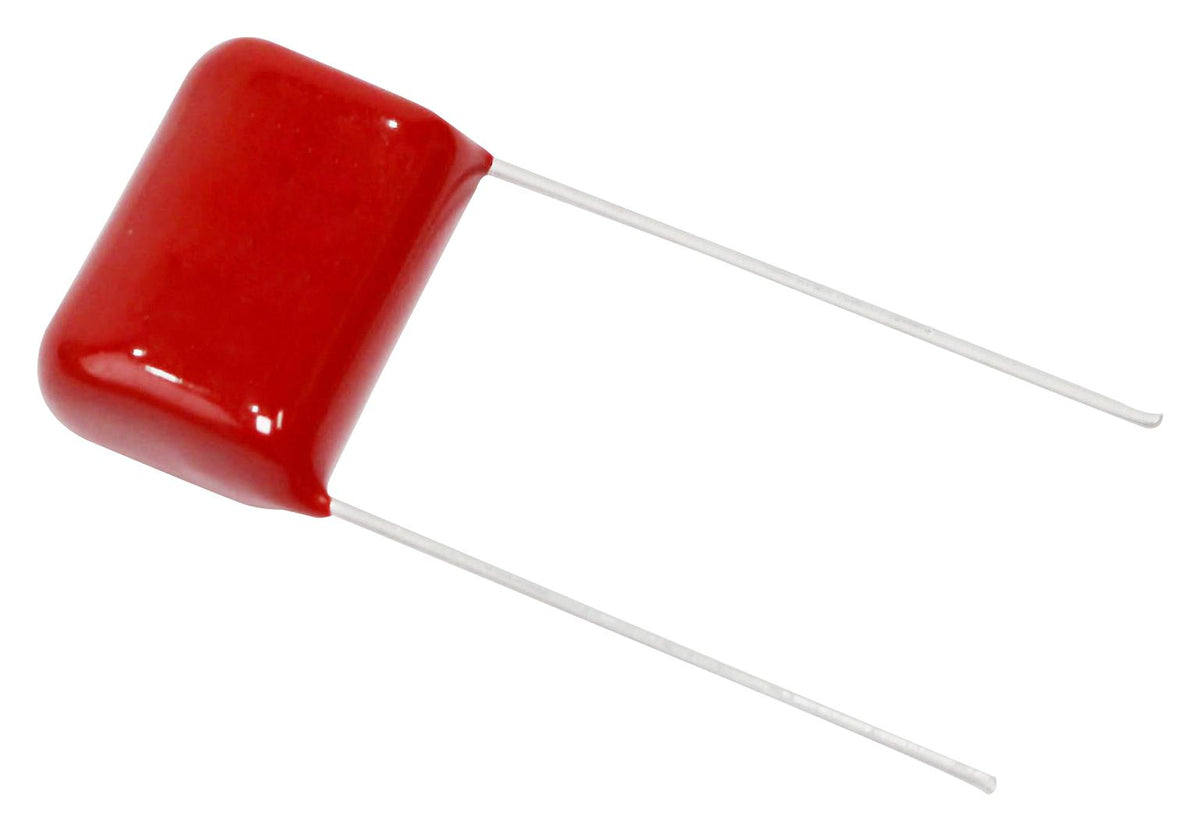

Ceramic Capacitor 1uF 1000nF 630V

The Ceramic Capacitor 1uF 1000nF 630V is a non-polarised capacitor with a capacitance of 1 µF (1000 nF) and a high voltage rating of 630 V. It suits circuits where ordinary 50 V ceramic capacitors are not enough, such as filtering and decoupling on high-voltage DC rails, snubber networks across switches and relays, and DC blocking in high-voltage stages.

Ceramic Capacitor 1uF 1000nF 630V Specifications

• Capacitance: 1 µF (1000 nF, 1,000,000 pF)
• Voltage rating: 630 V
• Dielectric: ceramic
• Polarity: none, can be fitted either way round
• Value code: 105 (standard code for 1 µF)
• Pack size: 1 piece

Ceramic Capacitor 1uF 1000nF 630V Applications

• Filtering and decoupling on high-voltage DC rails
• RC snubbers across relay contacts, triacs and switching transistors
• DC blocking and coupling in high-voltage signal stages
• Repairing power supplies, inverters and LED drivers
• Electronics labs and prototypes

What's in the Box

• 1 × 1 µF 630 V ceramic capacitor

Tip: A charged 630 V capacitor can give a dangerous shock, so discharge it through a resistor before touching it. Choose a rating well above the highest voltage in your circuit, and do not connect it directly across the AC mains, where an X2 safety-rated capacitor is required.
