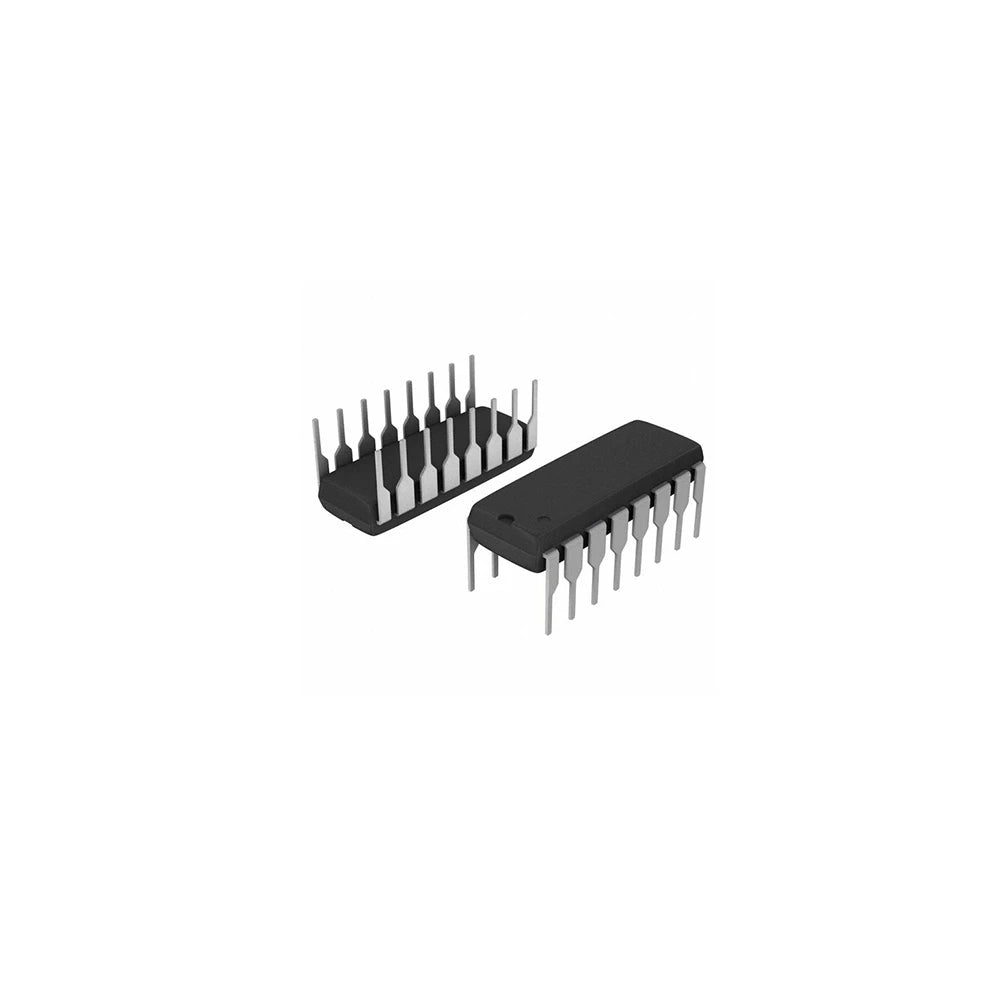

Decade Up / Down Counter 74190

Part no. 10380895

$2.25
In stock
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

The Decade Up / Down Counter 74190 is a synchronous 4-bit BCD counter that counts 0 to 9 in either direction. A single clock input drives the count, a down/up pin selects the direction, and a parallel load input lets you preset any starting value. It is widely used in digital clocks, timers, event counters and logic lab experiments with 7-segment displays.

Decade Up / Down Counter 74190 Specifications

  • Function: synchronous decade (BCD) up/down counter, 0–9
  • Outputs: QA–QD (BCD), MAX/MIN and ripple clock (RCO) for cascading
  • Controls: clock, down/up select, active-low count enable, active-low asynchronous load
  • Data inputs: A–D for presetting the count
  • Package: 16-pin DIP
  • Power pins: VCC pin 16, GND pin 8
  • Supply voltage: 5 V (standard 74-series logic)

Decade Up / Down Counter 74190 Applications

  • Up/down counters for digital clocks and timers
  • Event and object counters with a 7-segment display
  • Countdown timers and presettable counters
  • Digital electronics labs and university projects

What's in the Box

  • 1 × 74190 decade up/down counter IC

Tip: Feed the BCD outputs to a 7447 decoder to drive a common-anode 7-segment display. To count beyond 9, cascade counters using the RCO output, and debounce any mechanical switch used as the clock.
