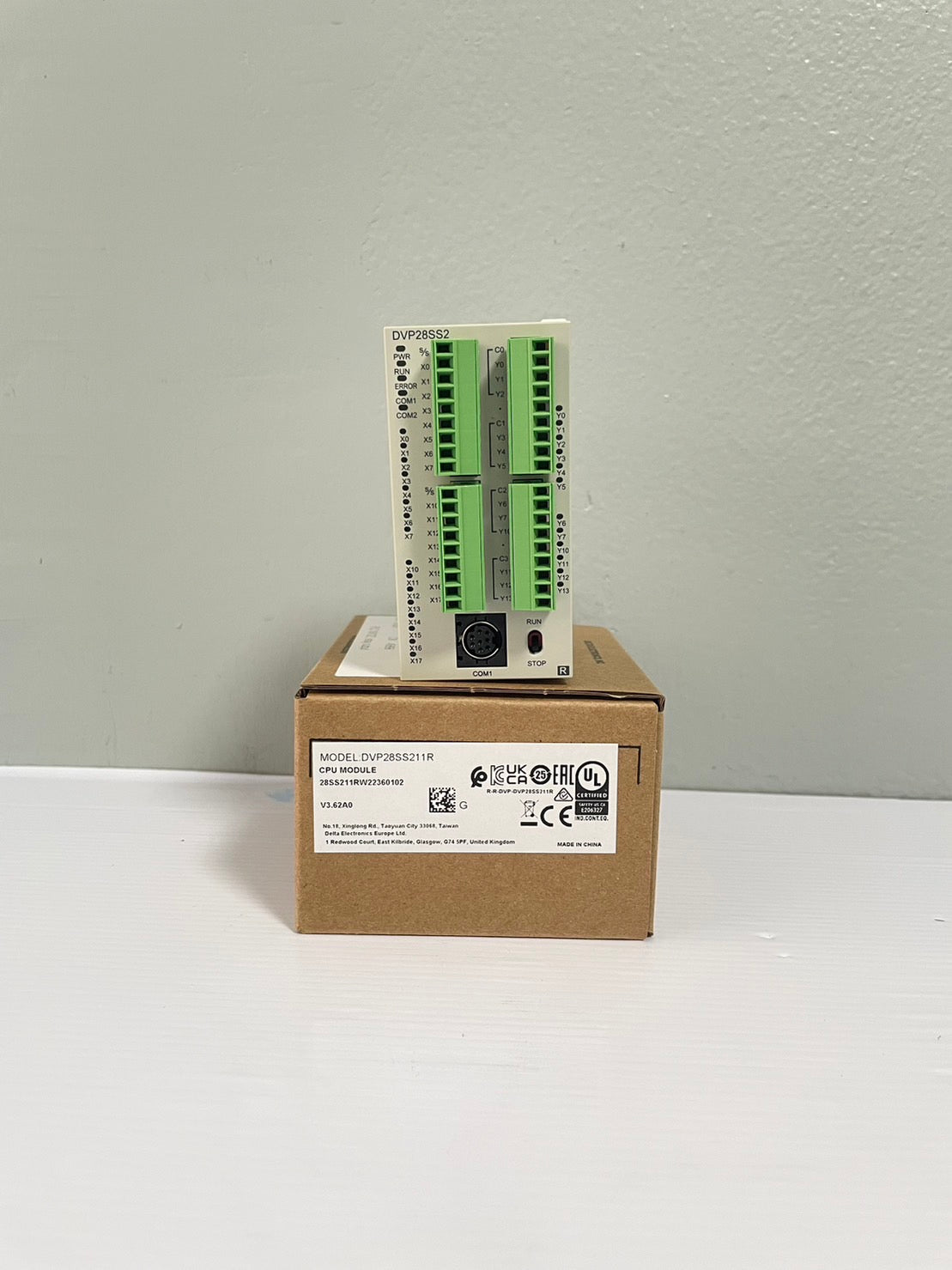

Delta CPU DVP28SS211R

The Delta CPU DVP28SS211R is a slim PLC from the DVP-SS2 series with 16 digital inputs and 12 relay outputs built in. It has a 32-bit CPU, 8k steps of program memory and built-in RS-232 and RS-485 ports with Modbus ASCII/RTU, so it can talk to HMIs, inverters and other PLCs out of the box. Add Delta DVP-S extension modules to expand the system up to 480 I/O points.

Delta CPU DVP28SS211R Specifications

• Brand: Delta Electronics (DVP-SS2 series)
• Digital inputs: 16 × 24 VDC (sink or source)
• Digital outputs: 12 × relay
• Program capacity: 8k steps
• Data registers: 5k words
• Basic instruction speed: 0.35 µs
• High-speed counters: 4 × 20 kHz and 4 × 10 kHz
• Communication: RS-232 and RS-485, Modbus ASCII/RTU master/slave
• Max I/O: 480 points with extension modules
• Power supply: 24 VDC
• Programming software: Delta ISPSoft, WPLSoft or DIAStudio

DVP28SS211R Applications

• Control of small and mid-sized machines
• Packaging lines, conveyors and pump stations
• Modbus networks with HMIs and VFDs
• PLC training labs and technical schools

What's in the Box

• 1 × Delta DVP28SS211R PLC CPU

Tip: Need more I/O? Pair it with the DVP16SP11R extension module for 8 more inputs and 8 more relay outputs, and connect an HMI over the RS-232 or RS-485 port.
