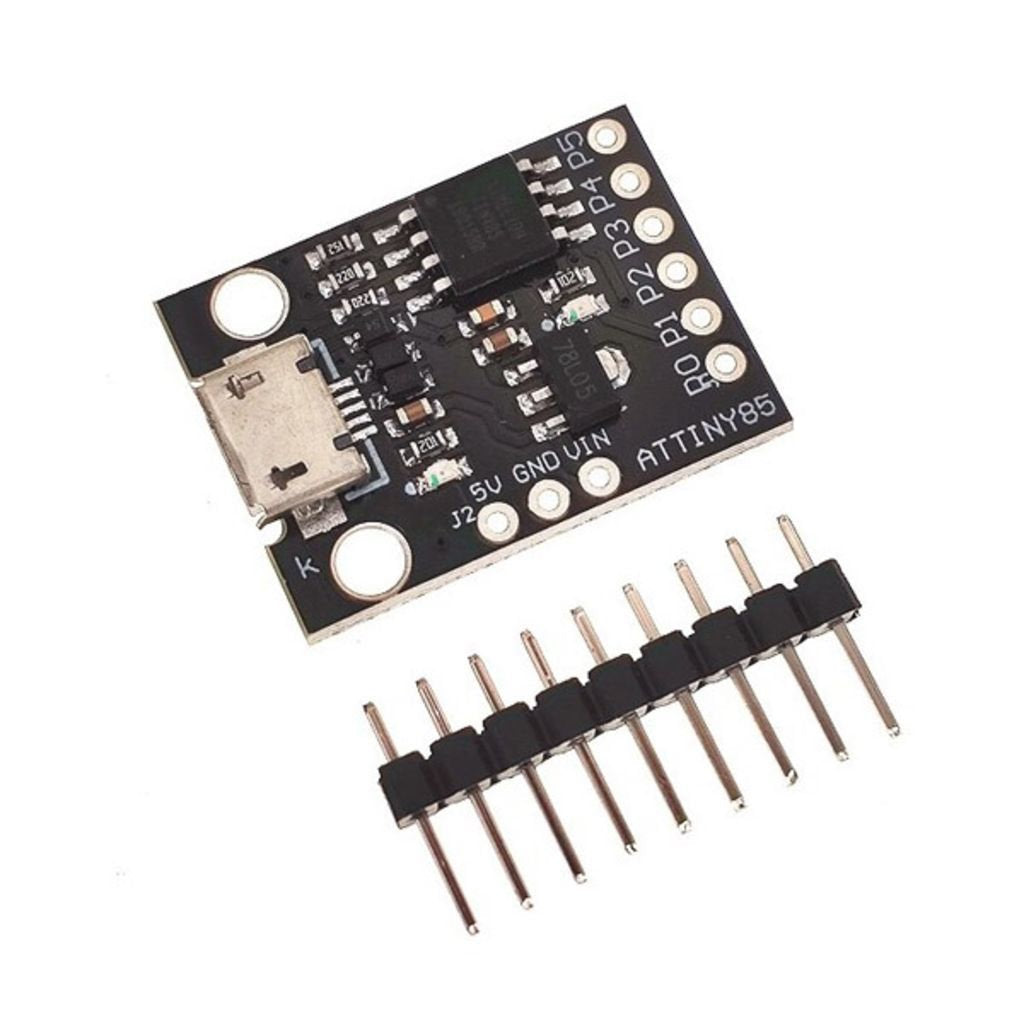

Digispark ATTINY85 Mini USB Development Board

The Digispark ATTINY85 Mini USB Development Board is a tiny microcontroller board based on the ATtiny85. It connects directly to USB for programming, runs Arduino IDE sketches, and is ideal for small projects where a full Arduino would be too big, such as USB keyboard tricks, LED effects and simple sensors.

Digispark ATTINY85 Specifications

• Microcontroller: ATtiny85
• Flash memory: 8 KB (about 6 KB free after the bootloader)
• I/O pins: 6 (P0–P5); 2 are shared with USB when the sketch uses USB
• PWM: 3 pins
• Analog inputs: 4 pins
• Interfaces: I2C and SPI through the USI
• Power: USB 5 V or 7–35 V external (12 V or less recommended)
• Regulator: onboard 5 V
• LEDs: power LED and a user LED

Digispark ATTINY85 Applications

• USB HID projects that act as a keyboard or mouse
• Compact LED, NeoPixel and buzzer controllers
• Small sensor nodes and timers
• Learning microcontrollers on a low budget

What's in the Box

• 1 × Digispark ATTINY85 mini USB development board

Tip: Install the Digistump board package and drivers first. Click Upload with the board unplugged, then plug it in when the IDE asks; the bootloader waits about 5 seconds before running your sketch.
