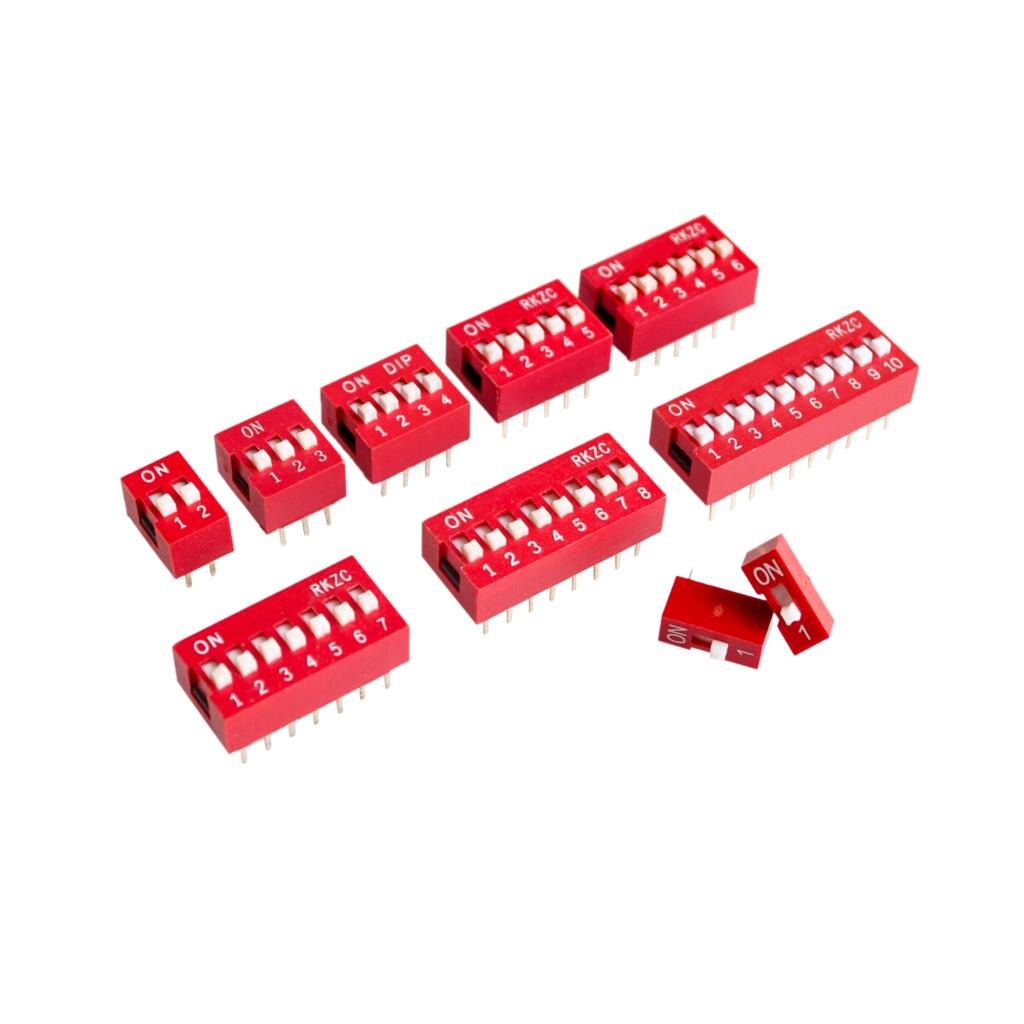

Dip Switch Red 6 Pins

The Dip Switch Red 6 Pins is a compact red DIP (dual in-line package) switch made of small individual switches, each of which can be set ON or OFF by hand. It is a simple way to store fixed settings such as an address or operating mode on a circuit board, and an Arduino or other microcontroller can read the switches as digital inputs.

Dip Switch Red 6 Pins Specifications

• Type: DIP switch, through-hole
• Colour: red
• Pins: 6, as given in the product name
• Pin pitch: 2.54 mm (0.1 in), fits breadboards, DIP sockets and perfboards
• Operation: each switch is set ON or OFF by hand, easily with a pen tip or small screwdriver
• Switching: each switch connects the pair of pins directly opposite each other

Dip Switch Red 6 Pins Applications

• Selecting modes and options in Arduino and ESP32 projects
• Setting device addresses on small boards
• Enabling or disabling parts of a circuit during testing
• Binary input switches for digital logic lessons
• Configuration settings in repair and replacement work

What's in the Box

• 1 × red DIP switch, 6 pins

Tip: To read the switches with a microcontroller, connect one side of each switch to ground and the other to an input pin with the internal pull-up enabled (INPUT_PULLUP on Arduino), so a switch set to ON reads LOW.
