Dip Switch Red 7 Pins

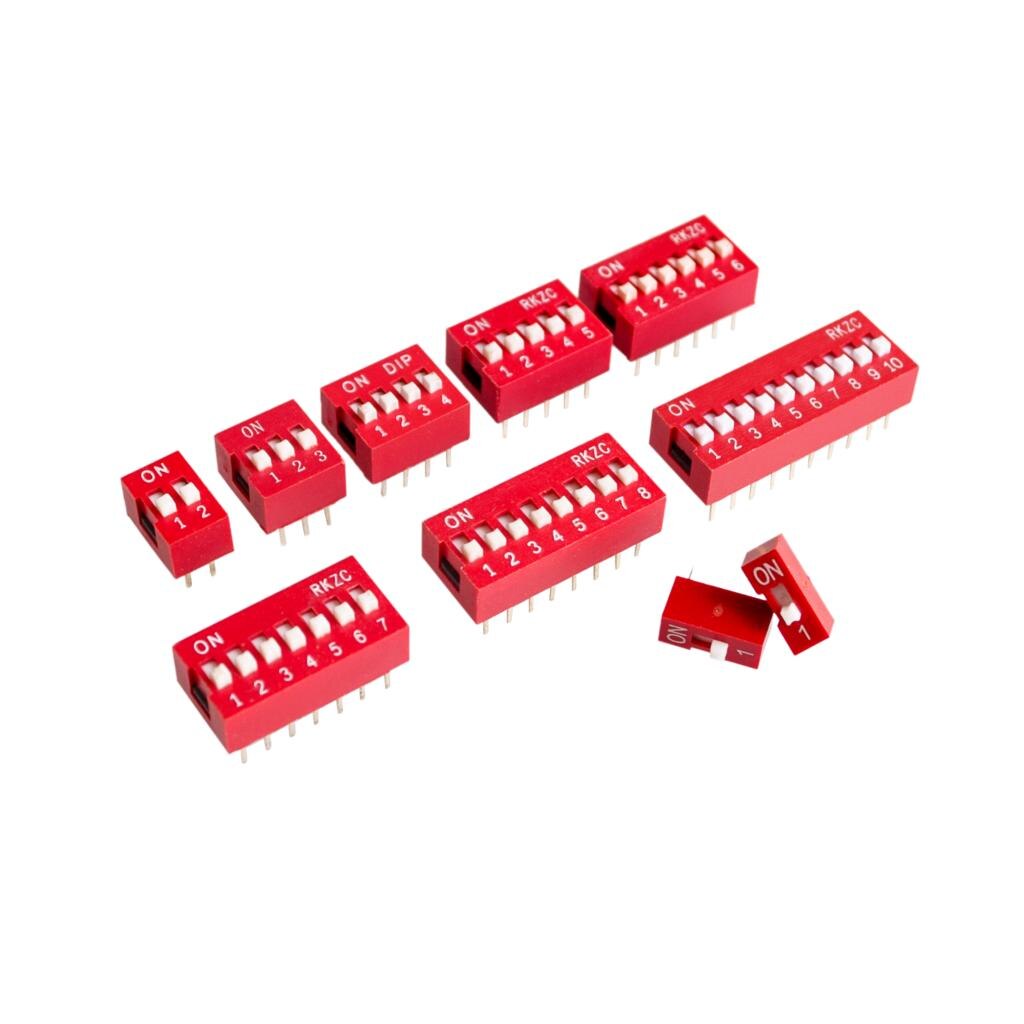

The Dip Switch Red 7 Pins is a red DIP (dual in-line package) switch block made of small individual switches that you set ON or OFF by hand. It keeps fixed settings such as a device address, an operating mode or a set of options directly on the circuit board, and an Arduino or other microcontroller can read each switch as a digital input.

Dip Switch Red 7 Pins Specifications

• Type: DIP switch, through-hole
• Colour: red
• Pins: 7, as given in the product name
• Pin pitch: 2.54 mm (0.1 in), fits breadboards, DIP sockets and perfboards
• Operation: each switch is set ON or OFF by hand, easily with a pen tip or small screwdriver
• Switching: each switch connects the pair of pins directly opposite each other

Dip Switch Red 7 Pins Applications

• Setting device addresses on communication and sensor boards
• Selecting operating modes and options in Arduino and ESP32 projects
• Setting codes on remote control and alarm circuits
• Binary input switches for digital logic lessons
• Configuration settings in repair and replacement work

What's in the Box

• 1 × red DIP switch, 7 pins

Tip: To read the switches with a microcontroller, connect one side of each switch to ground and the other to an input pin with the internal pull-up enabled (INPUT_PULLUP on Arduino), so a switch set to ON reads LOW. Check the ON marking on the body before soldering.
