Electromagnet 12V 3231P-12V60 18kg

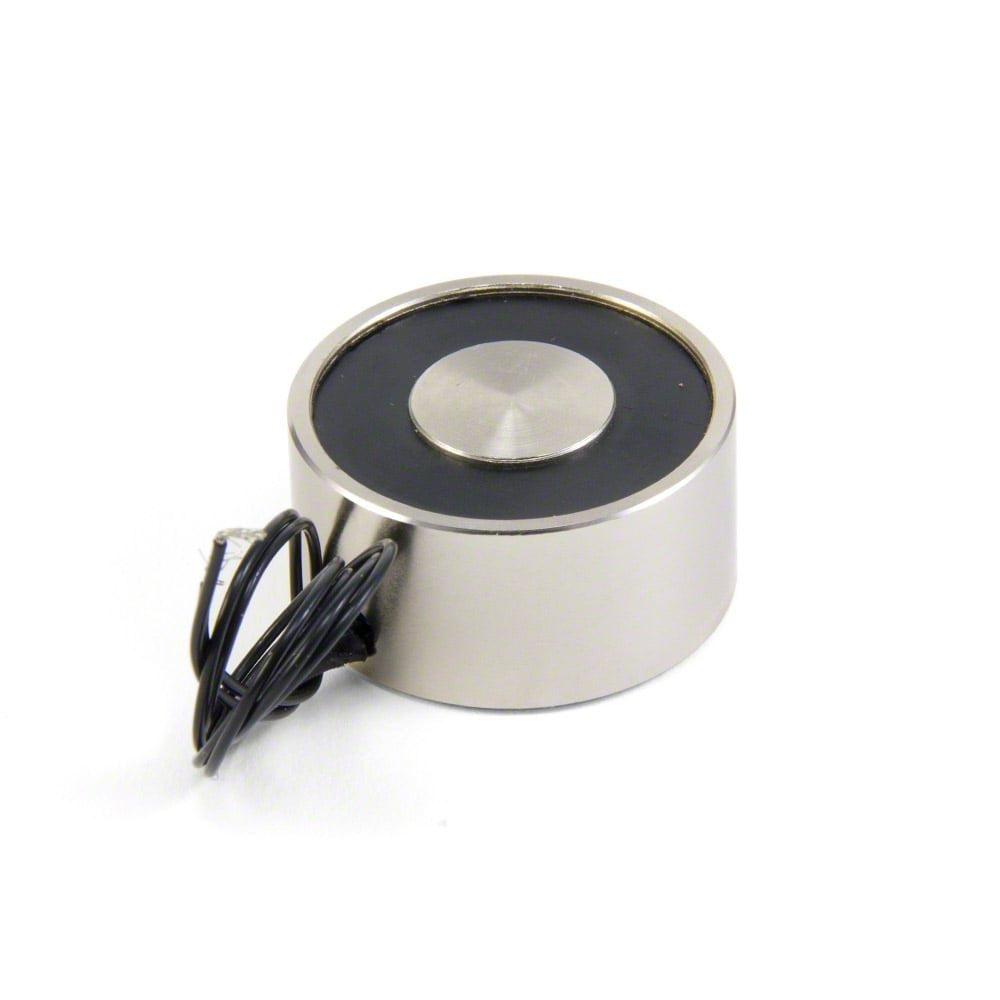

The Electromagnet 12V 3231P-12V60 18kg is a strong round holding electromagnet that runs on 12 V DC and gives up to 18 kg of pull on a steel surface. It holds steel parts, plates and strike plates firmly while powered and releases them as soon as the current is switched off, so it suits electromagnetic locks, grippers and holding fixtures that need more force than small hobby magnets.

Electromagnet 12V 3231P-12V60 18kg Specifications

• Model: 3231P-12V60
• Rated voltage: 12 V DC
• Holding force: up to 18 kg
• Type: round holding (lifting) electromagnet
• Works with: iron and steel (magnetic metals) only
• Control: on and off by switching the 12 V supply

Electromagnet 12V 3231P-12V60 18kg Applications

• Electromagnetic locks for cabinets, boxes and escape room doors
• Robot and pick-and-place grippers for steel parts
• Holding fixtures and jigs in workshops
• Automatic release mechanisms and interactive props
• Engineering and STEM projects

What's in the Box

• 1 × 12 V electromagnet, 3231P-12V60

Tip: Drive the coil through a relay or a logic-level MOSFET with a 1N4007 diode across it (cathode to +) to absorb the switch-off spike. For the full 18 kg, use a thick, flat, clean steel plate that covers the whole face; thin sheet, paint or an air gap lowers the force a lot.
