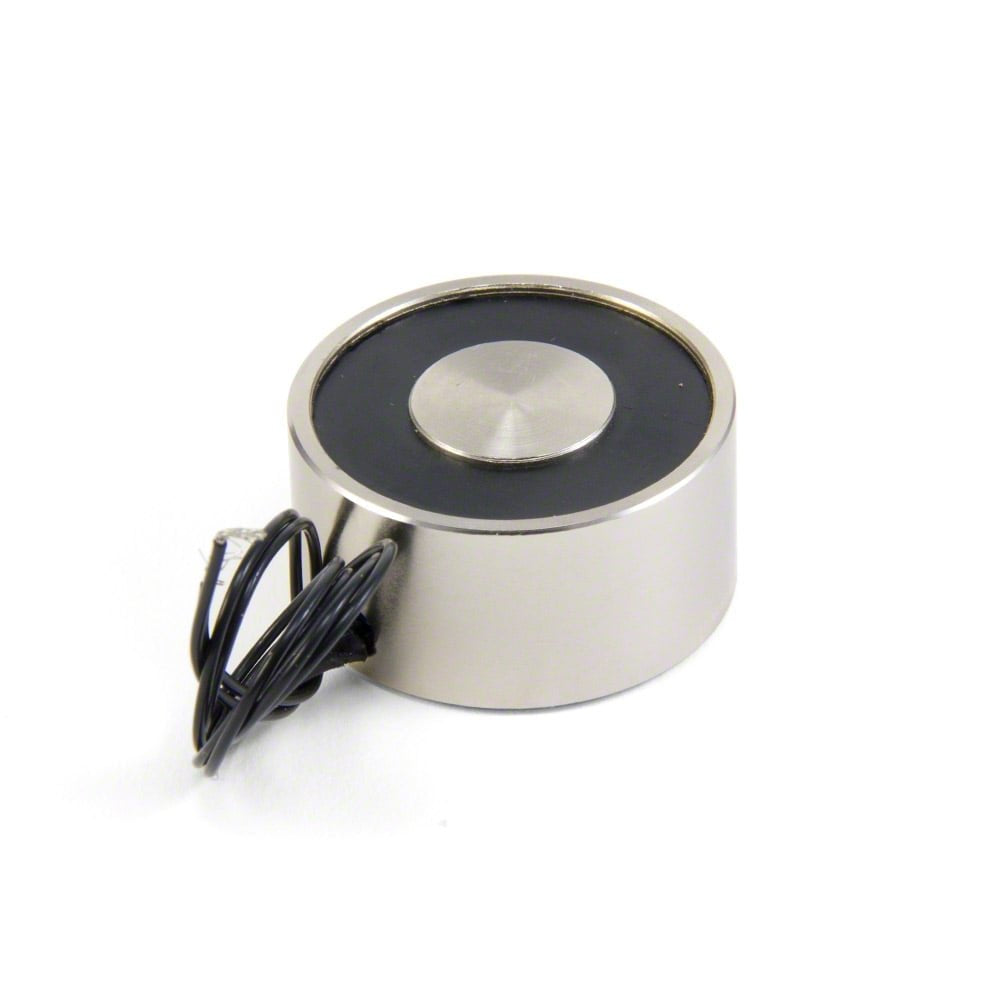

Electromagnet 12V 50Kg Pull

The Electromagnet 12V 50Kg Pull is a strong holding electromagnet that runs on 12 V DC and gives up to 50 kg of pull on a steel surface. While its coil is powered it holds iron and steel plates, doors and parts firmly, and it releases them as soon as the current is switched off. It suits electromagnetic locks, heavy-duty grippers and holding fixtures that need far more force than small hobby magnets.

Electromagnet 12V 50Kg Pull Specifications

• Rated voltage: 12 V DC
• Holding force: up to 50 kg
• Type: holding (lifting) electromagnet
• Works with: iron and steel (magnetic metals) only
• Control: on and off by switching the 12 V supply

Electromagnet 12V 50Kg Pull Applications

• Electromagnetic locks for cabinets, gates and escape room doors
• Grippers and pick-and-place tools for heavier steel parts
• Workshop holding fixtures and jigs
• Automatic release and drop mechanisms
• Engineering, physics and STEM projects

What's in the Box

• 1 × 12 V electromagnet, 50 kg pull

Tip: Switch the coil with a relay or a logic-level MOSFET, not straight from a microcontroller pin, and fit a 1N4007 diode across the coil (cathode to +) to absorb the switch-off spike. The full 50 kg is only reached on a thick, flat, clean steel plate that covers the whole face; thin sheet, paint or an air gap lowers the force a lot.

Orders placed before 14:00 are ready for pickup the same day. Delivery across Lebanon usually takes 1–3 working days.
