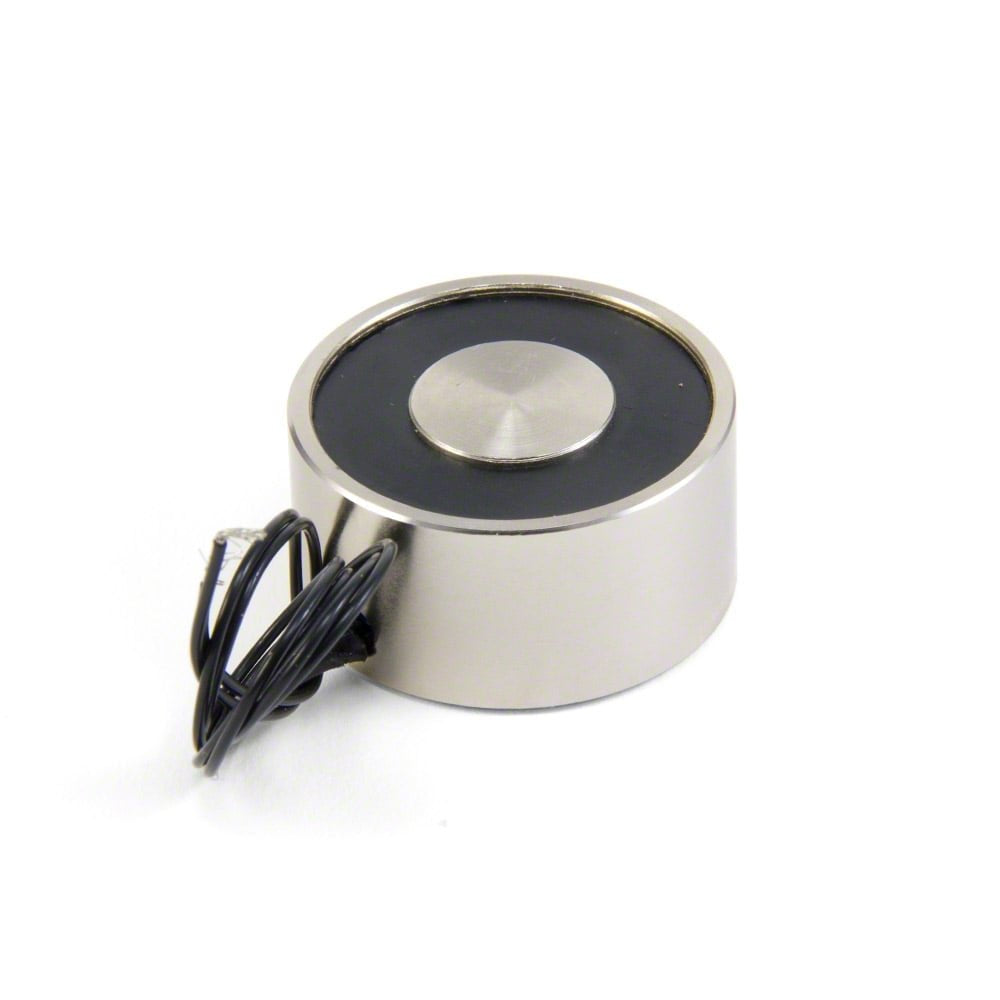

Electromagnet 24V 0.48A 2520P24Y50 9kg Pull

The Electromagnet 24V 0.48A 2520P24Y50 is a round holding electromagnet that runs on 24 V DC, draws 0.48 A and gives up to 9 kg of pull on a steel surface. When power is applied it holds iron or steel parts firmly against its face, and it releases them as soon as the current is switched off, so it is easy to control from a relay, a transistor or a microcontroller.

Electromagnet 24V 0.48A 2520P24Y50 Specifications

• Rated voltage: 24 V DC
• Current: 0.48 A
• Power: about 11.5 W (24 V × 0.48 A)
• Holding force: up to 9 kg
• Diameter: 25 mm
• Model: 2520P24Y50
• Works with: iron and steel (magnetic metals) only

Electromagnet 24V 0.48A 2520P24Y50 Applications

• Electromagnetic door, drawer and cabinet locks
• Grippers for robot arms and pick-and-place projects
• Holding fixtures and jigs in workshops
• Escape room puzzles, props and automation projects
• Physics and electronics teaching

What's in the Box

• 1 × 24 V electromagnet, 2520P24Y50

Tip: Switch the coil with a relay or a MOSFET rated for at least 0.5 A, and fit a diode such as the 1N4007 across the coil (cathode to +) to absorb the voltage spike at switch-off. Holding force is highest on clean, flat, thick steel in full contact with the face; air gaps, paint or thin sheet reduce it considerably.
