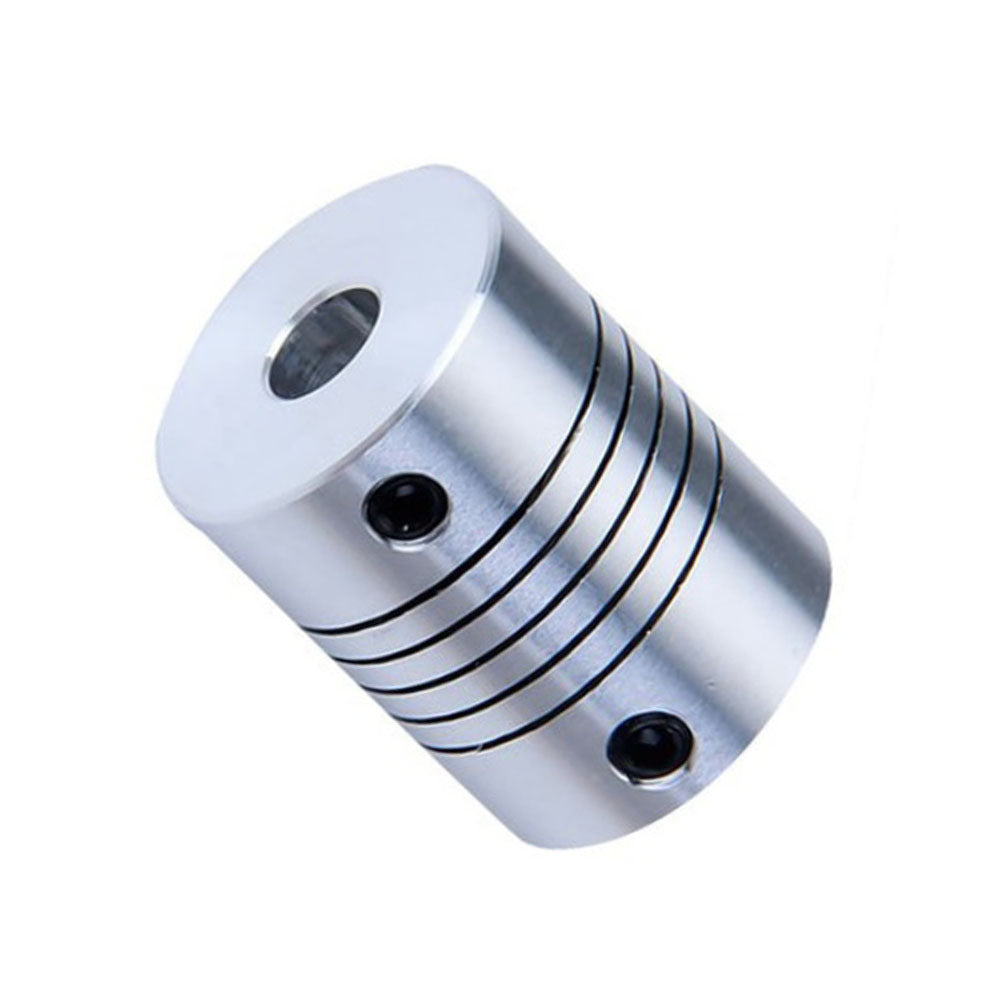

Flexible Coupler D19L25(3*5MM HOLE)

The Flexible Coupler D19L25(3*5MM HOLE) is a flexible shaft coupling with a 19 mm outer diameter and a 25 mm length, with a 3 mm bore at one end and a 5 mm bore at the other. It joins two shafts of different sizes, for example a small motor with a 3 mm shaft to a 5 mm rod, or a 5 mm NEMA 17 stepper shaft to a 3 mm lead screw or encoder shaft. The flexible body takes up small misalignment between the shafts and damps vibration, so the bearings last longer and the drive runs more smoothly.

Flexible Coupler D19L25(3*5MM HOLE) Specifications

• Outer diameter: 19 mm (D19)
• Length: 25 mm (L25)
• Bore sizes: 3 mm on one side, 5 mm on the other
• Type: flexible shaft coupler
• Fixing: screws on each end tighten onto the shafts

Flexible Coupler D19L25(3*5MM HOLE) Applications

• Connecting a 5 mm stepper motor shaft to a 3 mm shaft
• Joining small motors with 3 mm shafts to 5 mm rods, pulleys or axles
• 3D printer and CNC builds where the two shaft sizes differ
• Rotary encoders, potentiometers and sensors with 3 mm shafts
• Robotics and DIY mechanisms

What's in the Box

• 1 × flexible coupler D19L25, 3 mm and 5 mm bores

Tip: Check which end has the 3 mm bore, slide both shafts in until they almost meet in the middle, then tighten the screws, onto the flat of a D-shaped shaft if it has one. Line the two shafts up as closely as you can; the coupler is made to absorb only small misalignment.
