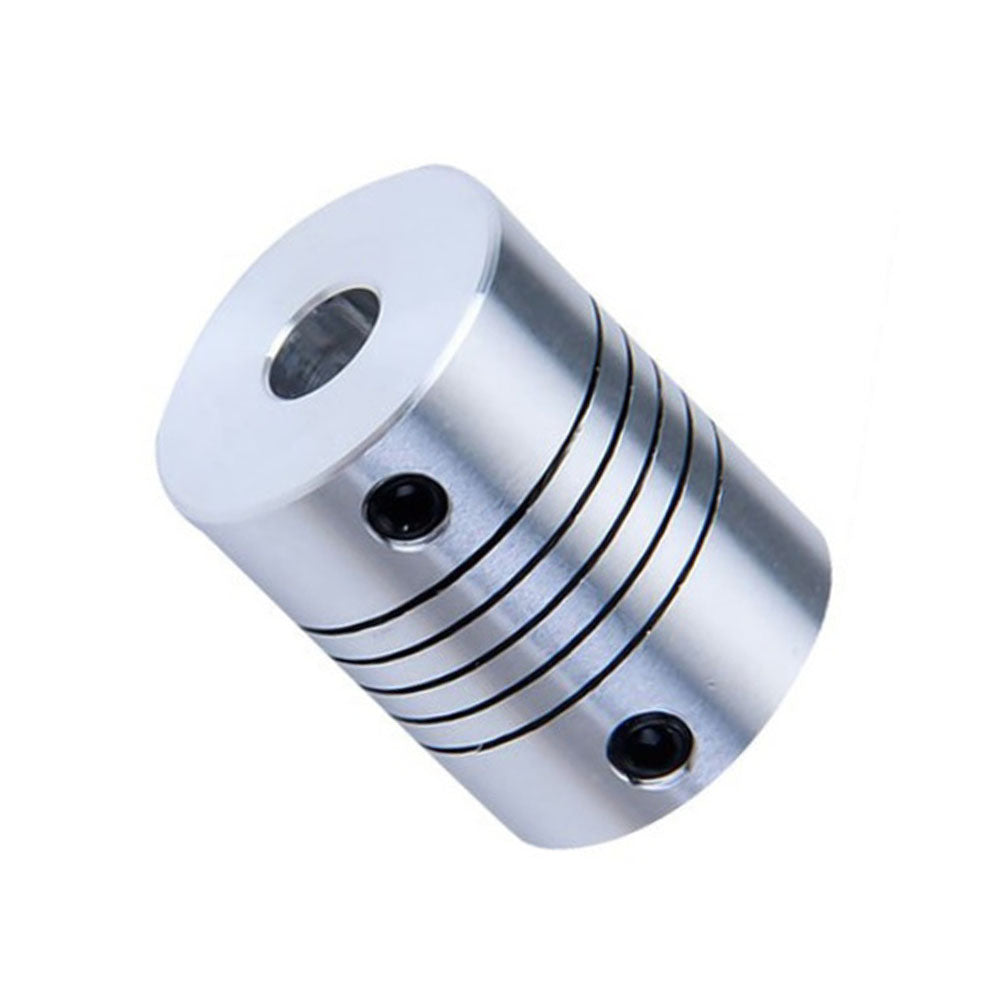

Flexible Coupler D19L25(5*5MM HOLE)

The Flexible Coupler D19L25(5*5MM HOLE) is a flexible shaft coupling with a 19 mm outer diameter and a 25 mm length, with a 5 mm bore at both ends. It joins two 5 mm shafts, for example a NEMA 17 stepper motor to a 5 mm drive shaft or rod. The flexible body takes up small misalignment between the shafts and damps vibration, so the motor bearings last longer and the drive runs more smoothly.

Flexible Coupler D19L25(5*5MM HOLE) Specifications

• Outer diameter: 19 mm (D19)
• Length: 25 mm (L25)
• Bore sizes: 5 mm on both sides
• Type: flexible shaft coupler
• Fixing: screws on each end tighten onto the shafts

Flexible Coupler D19L25(5*5MM HOLE) Applications

• Connecting stepper or DC motors with 5 mm shafts to 5 mm drive shafts
• Extending a 5 mm motor shaft with a 5 mm rod
• 3D printer and CNC builds where both shafts are 5 mm
• Rotary encoders and sensors with 5 mm shafts
• Robotics and DIY mechanisms

What's in the Box

• 1 × flexible coupler D19L25, 5 mm and 5 mm bores

Tip: Slide both shafts in until they almost meet in the middle, then tighten the screws, onto the flat of a D-shaped shaft if it has one. Line the two shafts up as closely as you can; the coupler is made to absorb only small misalignment.
