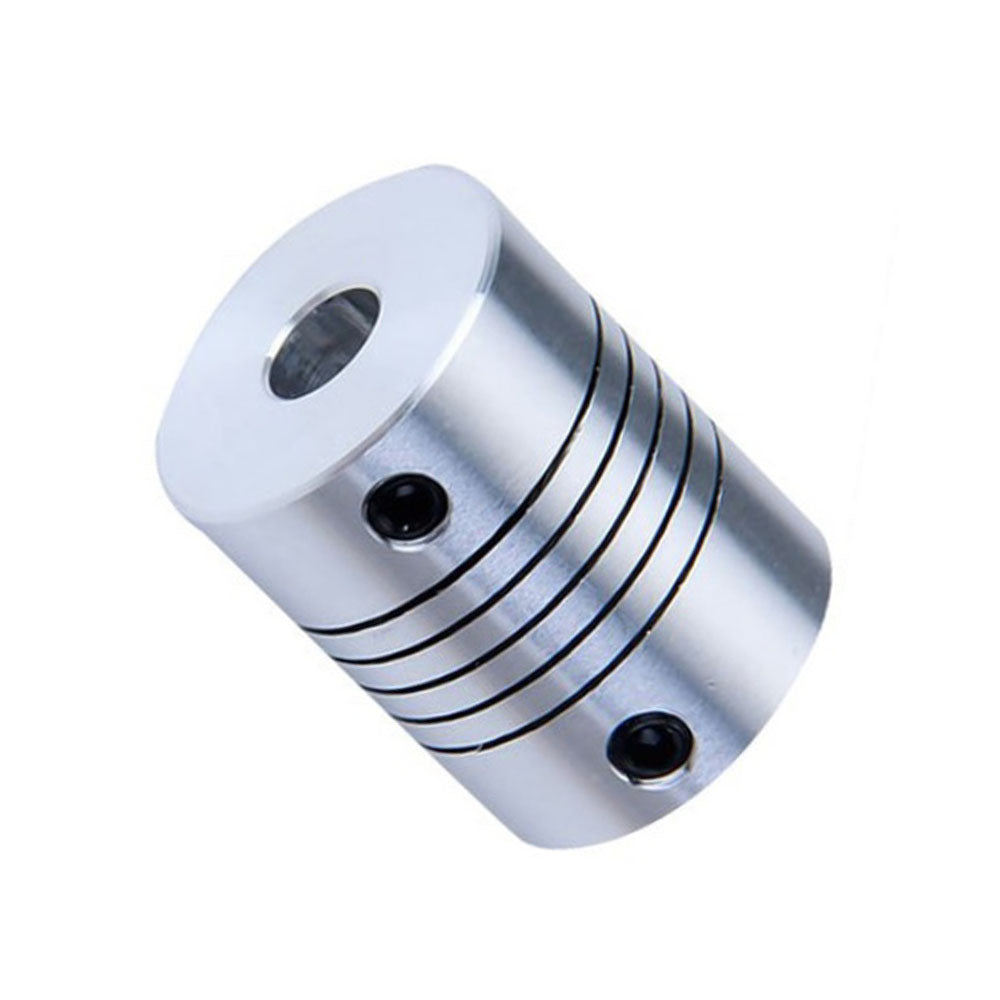

Flexible Coupler D19L25(6.35*8MM HOLE)

The Flexible Coupler D19L25(6.35*8MM HOLE) is a flexible shaft coupling with a 19 mm outer diameter and a 25 mm length that joins a 6.35 mm (1/4 inch) shaft to an 8 mm shaft. The 6.35 mm bore fits motors with imperial 1/4 inch shafts, including many NEMA 23 stepper motors, so this coupler links them to metric 8 mm lead screws, rods and pulley shafts. Its flexible body absorbs small misalignment and reduces vibration.

Flexible Coupler D19L25(6.35*8MM HOLE) Specifications

• Outer diameter: 19 mm (D19)
• Length: 25 mm (L25)
• Bore sizes: 6.35 mm (1/4 in) on one side, 8 mm on the other
• Type: flexible shaft coupler
• Fixing: screws on each end tighten onto the shafts

Flexible Coupler D19L25(6.35*8MM HOLE) Applications

• Connecting 1/4 inch motor shafts to 8 mm lead screws such as T8 screws
• Linear axes on CNC routers, engravers and 3D printers
• Mixing imperial and metric shafts in robots and machines
• DIY automation, camera sliders and linear stages

What's in the Box

• 1 × flexible coupler D19L25, 6.35 mm and 8 mm bores

Tip: Measure your motor shaft with calipers first: 6.35 mm and 6 mm shafts look alike but are not interchangeable. Slide both shafts in until they almost meet, then tighten the screws, onto the flat of the motor shaft if it has one.
