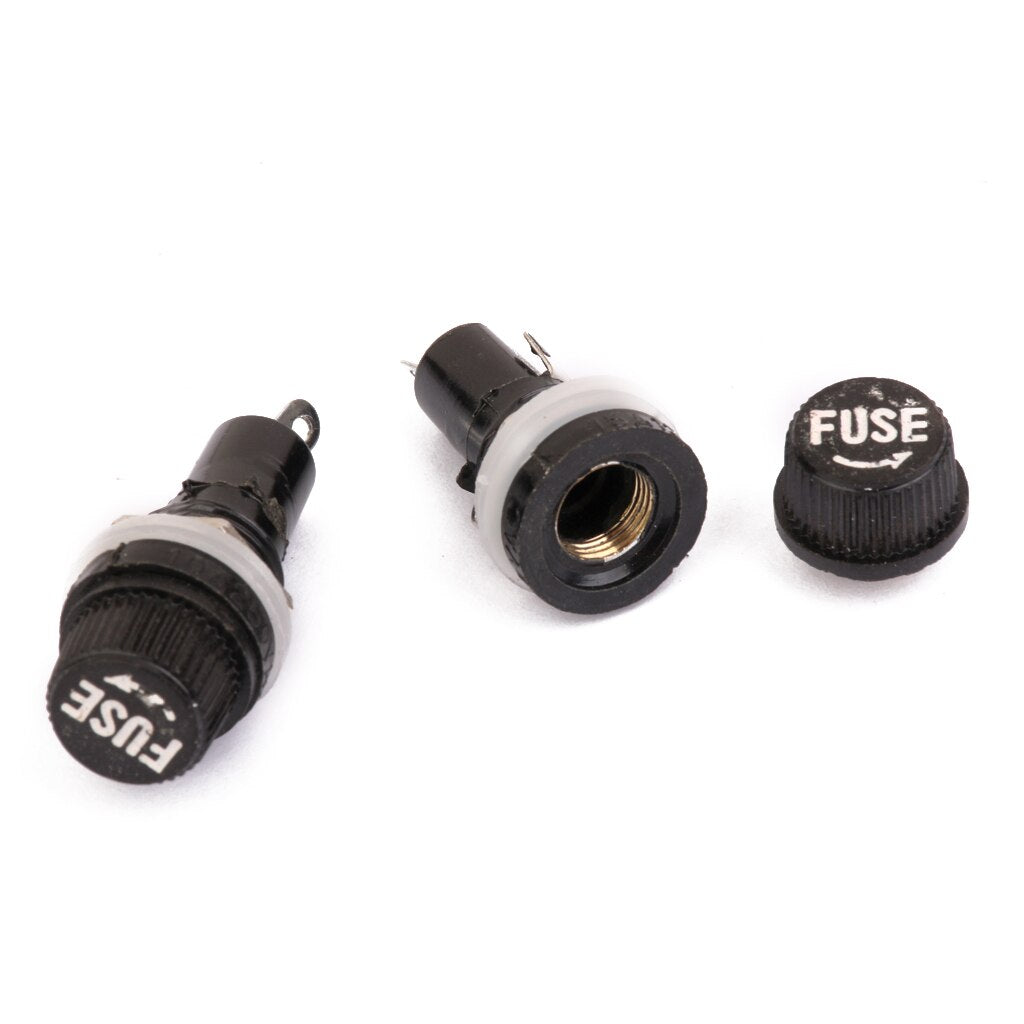

Fuse Socket 20mm Solderable

The Fuse Socket 20mm Solderable is a fuse holder that solders onto a circuit board and holds a standard 20 mm cartridge fuse (5 × 20 mm). With the fuse in a socket instead of soldered in place, a blown fuse can be pulled out and replaced in seconds without desoldering, which makes repairs and testing much easier. It is used wherever a board needs replaceable overcurrent protection.

Fuse Socket 20mm Solderable Specifications

• Fuse size: 5 × 20 mm cartridge fuses (glass or ceramic)
• Mounting: solderable, through-hole on a PCB
• Function: holds the fuse so it can be replaced quickly

Fuse Socket 20mm Solderable Applications

• Power input protection on custom PCBs and power supplies
• Amplifier, LED driver and charger boards
• Battery, solar and 12 V projects
• Replacing a damaged fuse holder on an existing board

What's in the Box

• 1 × solderable 20 mm fuse socket

Tip: Solder the socket to the board first and insert the fuse afterwards, so soldering heat does not reach the fuse. Always switch off and disconnect the power before changing a fuse, and replace it with one of the same current and voltage rating.
