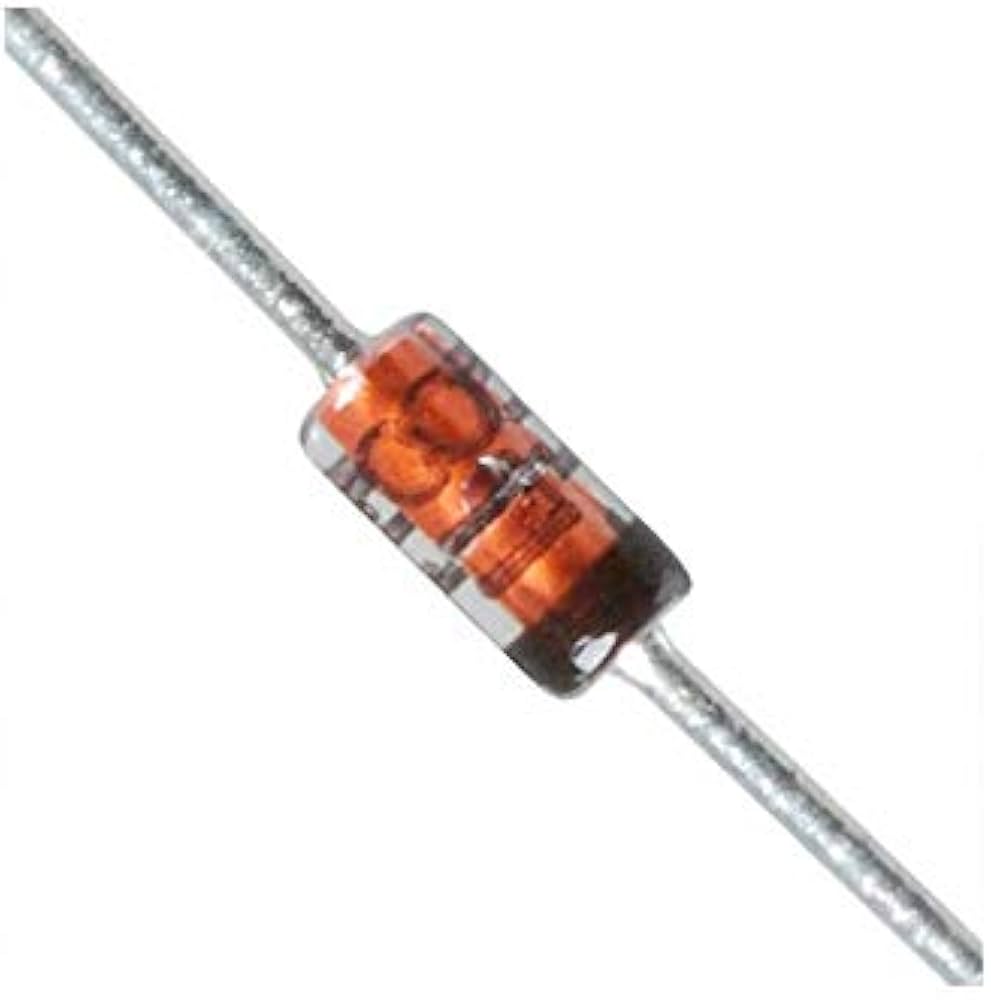

Germanium Diode 1N60

The Germanium Diode 1N60 is a small-signal germanium point-contact diode in a glass axial package. Its main advantage is a low forward voltage, around 0.2–0.3 V at small currents compared with about 0.6–0.7 V for a silicon diode, so it can detect and rectify very weak signals. It is the classic detector diode for AM and crystal radio receivers.

Germanium Diode 1N60 Specifications

• Part number: 1N60
• Material: germanium
• Construction: point-contact, small-signal diode
• Forward voltage: low, typically about 0.2–0.3 V at small currents
• Package: glass axial, through-hole; the band marks the cathode
• Use: small signals only, not for power rectification

Germanium Diode 1N60 Applications

• AM envelope detector in radio receivers
• Crystal radio and other simple radio projects
• RF probes and signal level detectors
• Clipping diodes in guitar fuzz and overdrive pedals
• Rectifying low-voltage signals in test circuits

What's in the Box

• 1 × 1N60 germanium diode

Tip: Germanium diodes are sensitive to heat, so solder quickly and hold the lead with pliers as a heatsink. The end with the band is the cathode (−).
