Hantek DSO2D10 100MHz 2CH Signal Generation Oscilloscope with Signal Source (EU Plug)

The Hantek DSO2D10 is a 2-channel digital storage oscilloscope with 100 MHz bandwidth and a built-in signal source. It displays and measures signals on two channels while also generating test waveforms, so one compact bench instrument covers both jobs for hobbyists, technicians and students.

Hantek DSO2D10 Specifications

• Channels: 2 analog input channels
• Bandwidth: 100 MHz
• Sample rate: 1 GSa/s
• Record length: up to 8 Mpts
• Display: 7 inch colour screen
• Signal source: built-in, up to 25 MHz
• Power: mains, EU plug

Hantek DSO2D10 Applications

• Debugging microcontroller, digital and analog circuits
• Checking power supply ripple and switching waveforms
• Testing amplifiers and filters with the built-in signal source
• Electronics repair and maintenance
• School, university and maker labs

What's in the Box

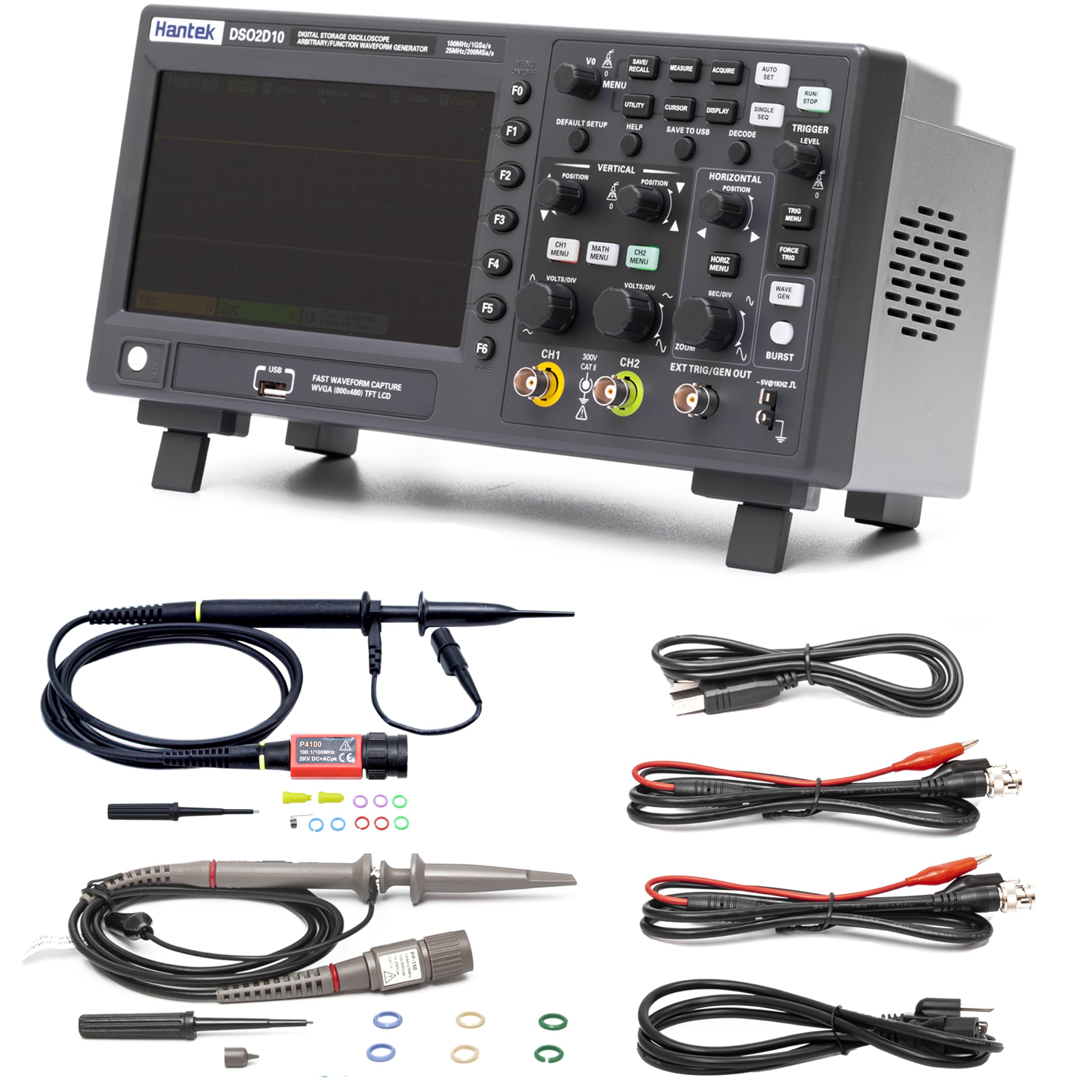

• 1 × Hantek DSO2D10 oscilloscope (accessories as supplied by Hantek)

Tip: Set the probe switch and the channel's probe setting to the same ratio, for example ×10, and compensate the probe on the calibration output before measuring. Never connect a probe ground clip to a point that is not at ground potential, such as mains live, without an isolated or differential probe.
