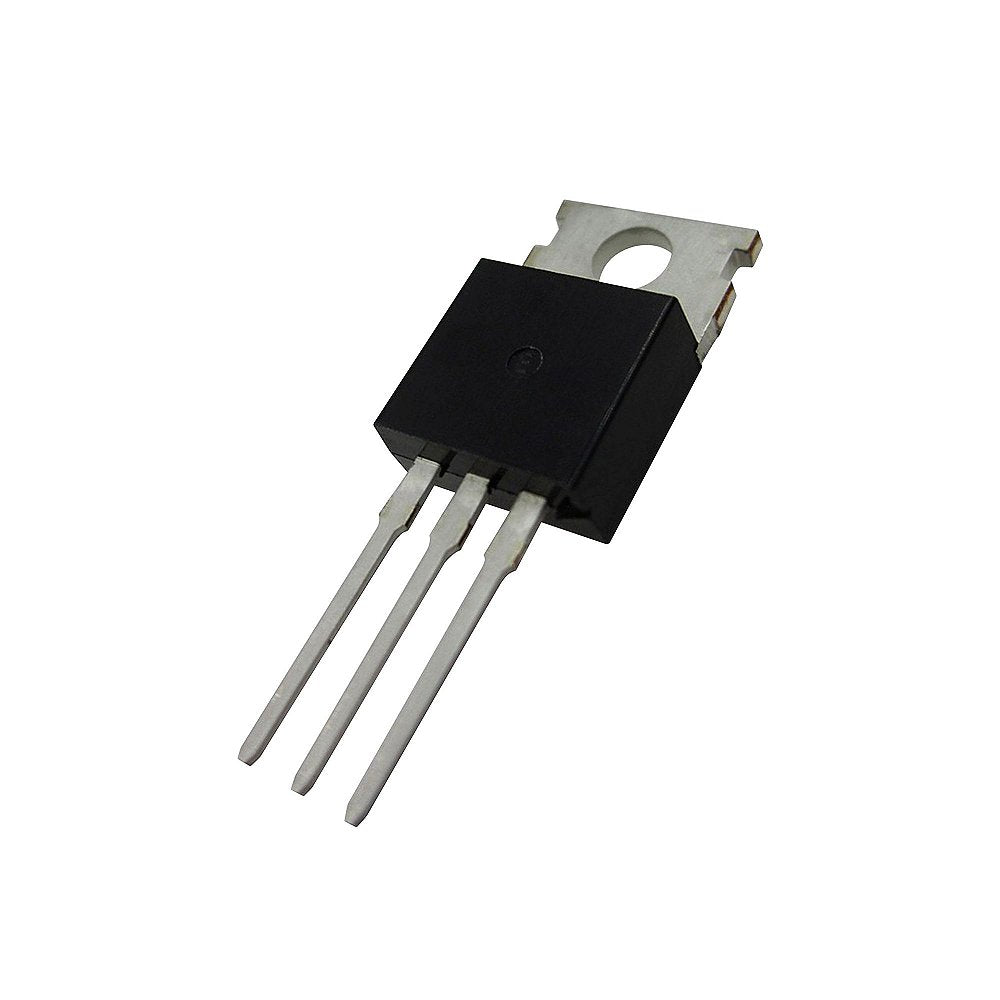

Mosfet Transistor IRFZ44

The Mosfet Transistor IRFZ44 is an N-channel power MOSFET in a TO-220 package that switches high currents with a very low on-resistance. It is a popular choice for switching DC motors, LED strips, solenoids and heaters from 12 V or 24 V supplies, and for the power stages of inverters and DC-DC converters.

Mosfet Transistor IRFZ44 Specifications

• Type: N-channel enhancement-mode power MOSFET
• Drain-source voltage: 55 V (IRFZ44N) or 60 V (IRFZ44)
• Continuous drain current: about 49–50 A at 25 °C case temperature, with a suitable heat sink
• On-resistance: 17.5 mΩ (IRFZ44N) or 28 mΩ (IRFZ44) at VGS = 10 V
• Gate threshold voltage: 2–4 V
• Gate-source voltage: ±20 V maximum
• Package: TO-220; pins gate, drain, source from left to right facing the front; the metal tab is the drain

Mosfet Transistor IRFZ44 Applications

• Low-side switching of DC motors, solenoids and LED strips
• PWM speed and brightness control
• Inverters, UPS circuits and DC-DC converters
• Load switches and battery protection circuits
• Robotics and automation projects with a gate driver

What's in the Box

• 1 × IRFZ44 N-channel MOSFET

Tip: The IRFZ44 is not a logic-level MOSFET: it needs about 10 V on the gate to turn fully on, so a 5 V Arduino pin alone is only enough for small loads. For high currents use a gate driver, add a 10 kΩ pull-down from gate to source, and fit a flyback diode across motors and coils.
