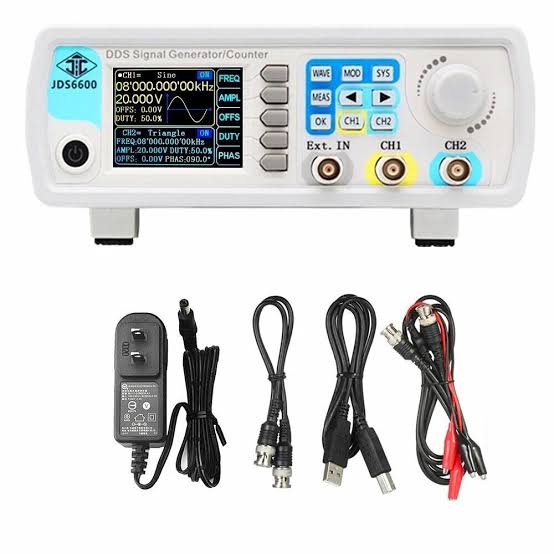

JDS-6600 60MHz Dual Channel Fully CNC DDS Arbitrary Wave Function Signal Generator Pulse Signal Source Frequency Meter EU Plug

The JDS-6600 60MHz dual channel DDS function and arbitrary waveform signal generator is a bench instrument that produces two independent signals up to 60 MHz and also works as a frequency meter and counter. Its direct digital synthesis (DDS) design gives stable, precisely set frequencies, and every setting is made digitally from the front-panel keys and knob. It suits electronics labs, repair benches, universities and hobbyists who need test signals for amplifiers, filters, sensors and digital circuits.

JDS-6600 60MHz Specifications

• Maximum frequency: 60 MHz (sine wave)
• Channels: 2 independent outputs
• Synthesis: DDS (direct digital synthesis)
• Waveforms: sine, square, triangle, pulse, sawtooth and other built-in waves, plus user-defined arbitrary waveforms
• Sample rate: 266 MSa/s
• Vertical resolution: 14-bit
• Arbitrary waveform length: 2048 points
• Measurement: built-in frequency meter and counter
• Display: 2.4 in colour TFT
• Power: supplied with an EU plug power adapter

JDS-6600 60MHz Applications

• Testing amplifiers, filters and audio circuits
• Generating clock and pulse signals for digital and microcontroller circuits
• Measuring unknown frequencies with the built-in counter
• Electronics teaching labs and university practicals
• Repair and servicing of electronic equipment

What's in the Box

• 1 × JDS-6600 60MHz dual channel signal generator
• 1 × power adapter with EU plug

Tip: The maximum output amplitude is lower at high frequencies, so check the signal level with an oscilloscope when working near the top of the range. Use 50 Ω BNC coaxial cables for clean signals, and never feed an external voltage into the output connectors.
