KCD1-101 Rocker Panel Size 6A/250V 2pin

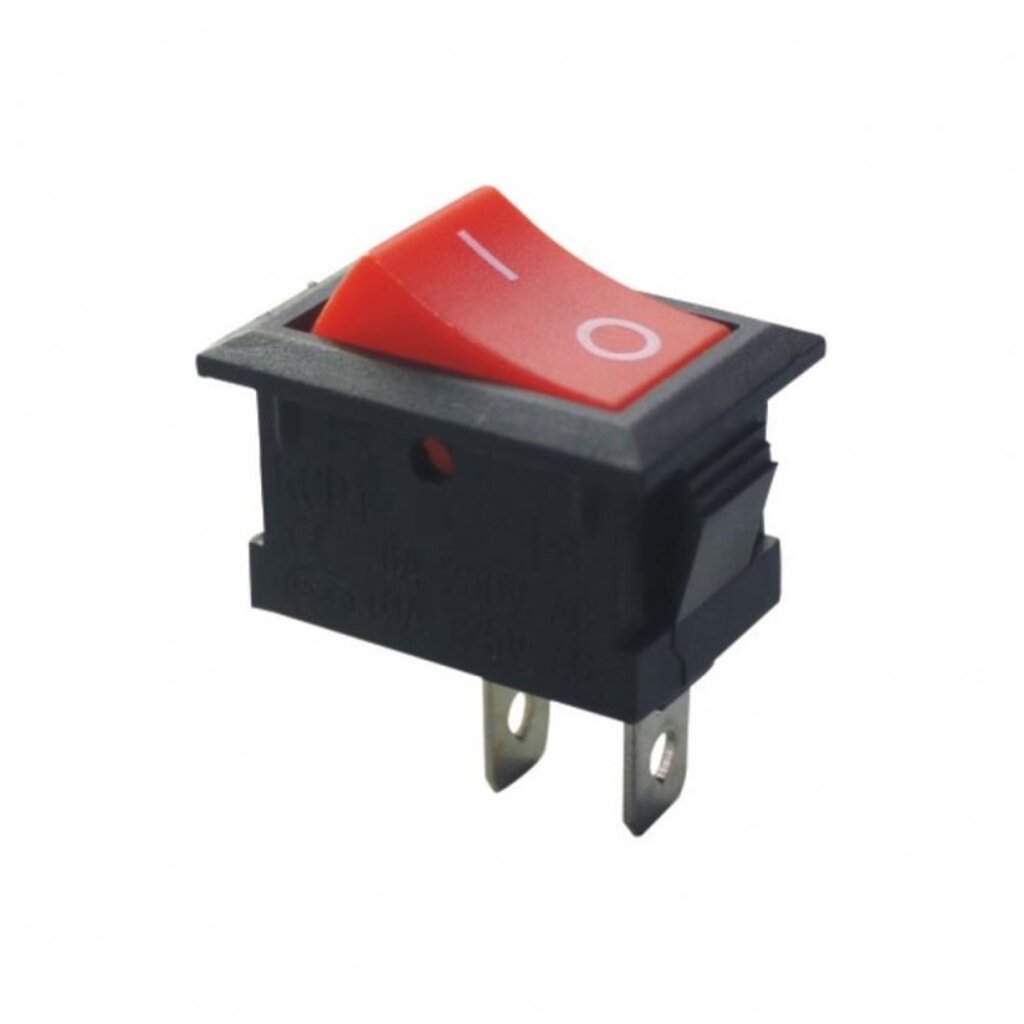

The KCD1-101 Rocker switch is a small rectangular ON/OFF rocker switch with 2 pins, rated 6 A at 250 V. It snaps into a rectangular cut-out in a panel or project box and stays in the position you set, which makes it a simple main power switch for electronics projects, power supplies and small appliances.

KCD1-101 Rocker Switch Specifications

• Model: KCD1-101
• Function: ON/OFF, single pole single throw (SPST)
• Terminals: 2 pins
• Rating: 6 A / 250 V AC
• Shape: small rectangular
• Mounting: snap-in panel mount
• Action: latching, stays in the position you set

KCD1-101 Rocker Switch Applications

• Main power switch for Arduino and electronics project boxes
• Switching DC power supplies and battery packs
• LED lighting, fans and small appliances
• Repair and replacement of switches on equipment
• Robotics and school projects

What's in the Box

• 1 × KCD1-101 2-pin rocker switch

Tip: Keep the load current below 6 A. When switching mains voltage, turn the power off before wiring, switch the live wire, use insulated spade connectors or soldered joints covered with heat-shrink tubing, and mount the switch in a closed box.
