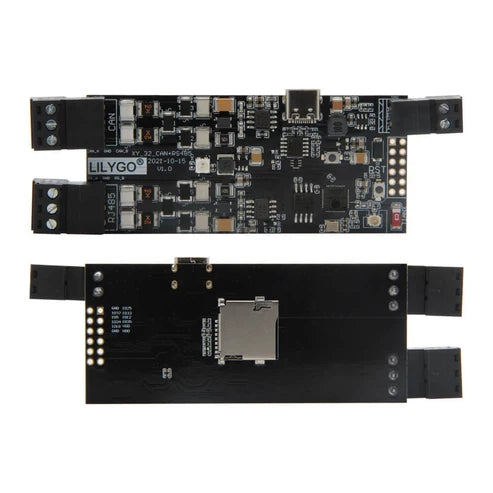

LilyGO ESP32 CAN RS485

The LilyGO ESP32 CAN RS485 is an ESP32 development board from LilyGO that adds CAN bus and RS485 interfaces to the ESP32's built-in Wi-Fi and Bluetooth. One small board can read data from industrial devices, vehicles and controllers and send it to a network or the cloud, which makes it a good base for Modbus RTU gateways, CAN bus loggers and industrial IoT projects. It is programmed with the Arduino IDE, PlatformIO or ESP-IDF.

LilyGO ESP32 CAN RS485 Specifications

• Microcontroller: ESP32, dual-core Xtensa LX6 up to 240 MHz, 520 KB SRAM
• Wireless: Wi-Fi 802.11 b/g/n (2.4 GHz) and Bluetooth (classic and BLE)
• CAN bus: ESP32 built-in TWAI (CAN 2.0) controller with an on-board CAN transceiver
• RS485: on-board RS485 transceiver for Modbus RTU and other serial buses
• Logic level: 3.3 V
• Programming: Arduino IDE, PlatformIO, ESP-IDF

LilyGO ESP32 CAN RS485 Applications

• Modbus RTU to Wi-Fi or MQTT gateways
• CAN bus logging and monitoring on vehicles and machines
• Reading energy meters, solar inverters and PLCs over RS485
• Industrial IoT and remote monitoring
• Learning the CAN and RS485 protocols

What's in the Box

• 1 × LilyGO ESP32 CAN RS485 board

Tip: CAN and RS485 are two-wire differential buses: connect CAN H to H and L to L (A to A and B to B for RS485), share a common ground, and fit a 120 Ω termination resistor at each end of a long bus. Check LilyGO's pin map for this board before setting the CAN and RS485 pins in your sketch.
