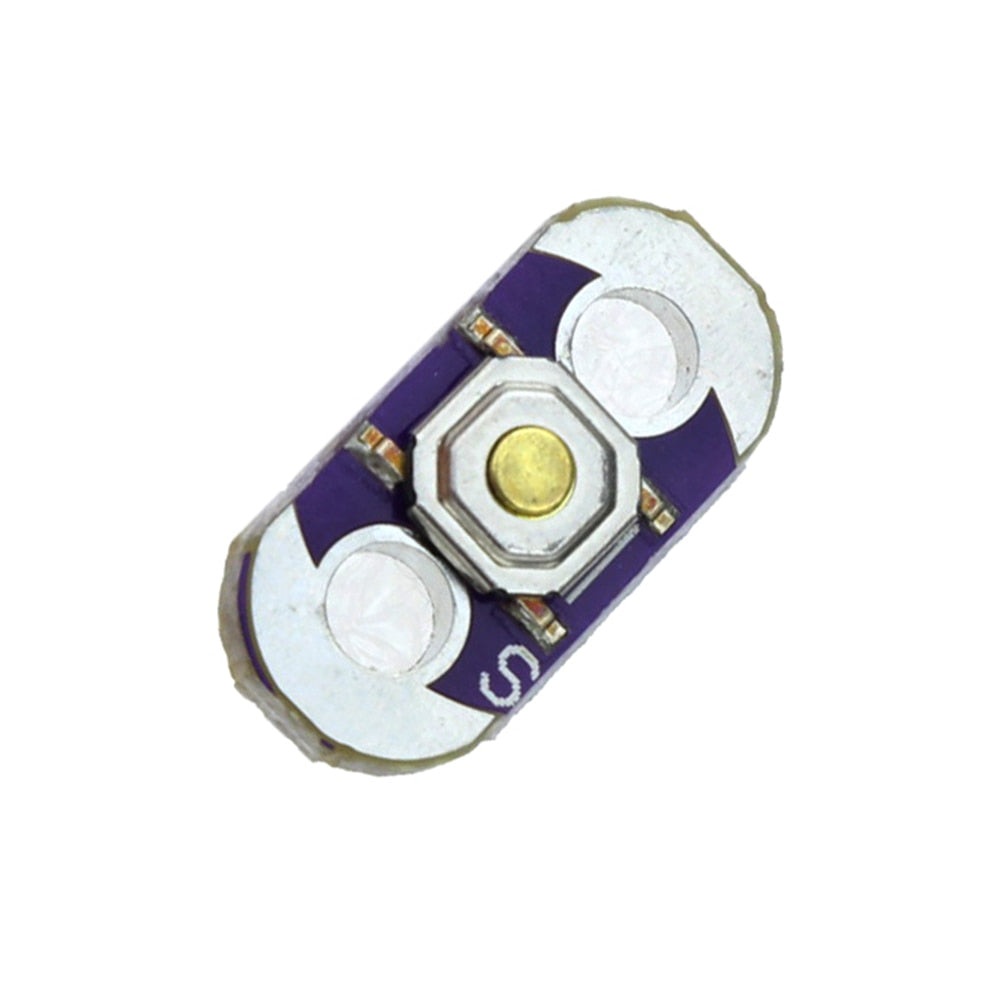

LilyPad Button Board

The LilyPad Button Board is a momentary push button mounted on a sewable LilyPad board. Its two pads are connected only while the button is pressed, so it is a simple way to add user input to wearable projects, such as starting a light pattern, changing a mode or triggering a sound.

LilyPad Button Board Specifications

• Type: momentary push button, normally open
• Operation: connects the two pads while pressed
• Connections: two sewable pads
• Mounting: LilyPad board for conductive thread or soldering
• Use: digital input for LilyPad Arduino and other microcontrollers

LilyPad Button Board Applications

• Changing light or sound modes in wearables
• Interactive costumes, soft toys and badges
• Triggering buzzers and LEDs in e-textile projects
• Wearable electronics classes

What's in the Box

• 1 × LilyPad Button Board

Tip: Sew one pad to a digital pin and the other to ground, then use pinMode(pin, INPUT_PULLUP); the pin reads LOW while the button is pressed. Add a short delay or debounce code so one press is not counted several times.
