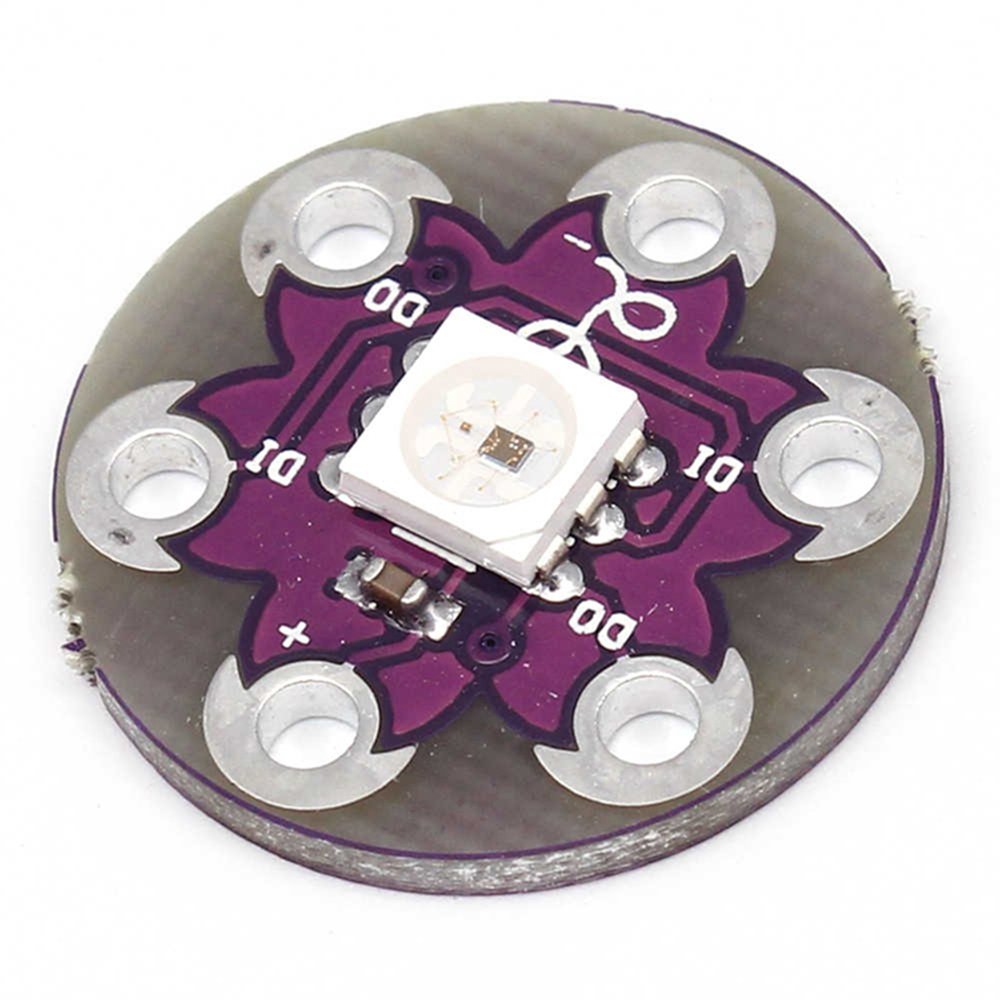

LilyPad Pixel Board WS2812

The LilyPad Pixel Board WS2812 is a sewable LilyPad board with a WS2812-type addressable RGB LED. Each pixel has its own driver, so a single data line from a LilyPad Arduino sets the colour of every pixel in a chain. It is ideal for colour-changing clothing, costumes and e-textile art.

LilyPad Pixel Board WS2812 Specifications

• LED: WS2812-type RGB LED with built-in driver
• Colour control: 8 bits per red, green and blue channel (24-bit colour)
• Control: single data line, compatible with NeoPixel-style libraries
• Chaining: data in and data out pads, so several boards form an addressable string
• Mounting: large sewable pads for conductive thread
• Size: about 20 mm diameter

LilyPad Pixel Board WS2812 Applications

• Colour-changing wearables and costumes
• Light-up bags, hats and accessories
• Notification lights driven by sensors
• E-textile workshops and Arduino classes

What's in the Box

• 1 × LilyPad Pixel Board

Tip: Connect your controller pin to the data in pad of the first pixel and run data out to data in on the next one. Keep power and ground stitches short and make sure threads never touch, to avoid shorts.
