LilyPad ProtoSnap Plus Sparkfun DEV-14346

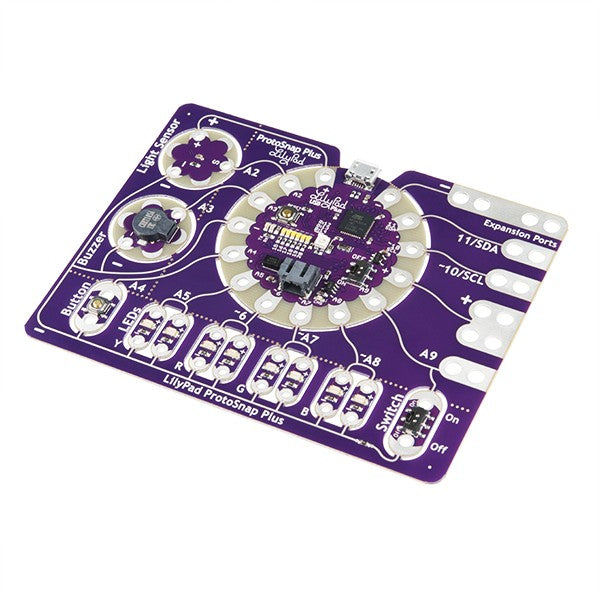

The LilyPad ProtoSnap Plus (SparkFun DEV-14346) is a sewable electronics learning board for e-textiles. It holds a LilyPad USB Plus microcontroller board and a set of LilyPad parts, such as LEDs, a buzzer, a button, a switch and a light sensor, already linked by traces on one panel. You can program and test everything first, then snap the pieces apart and sew them into a project with conductive thread.

LilyPad ProtoSnap Plus Specifications

• Main board: LilyPad USB Plus with an ATmega32U4 and Arduino bootloader
• Programming: Arduino IDE over micro-USB
• Parts on the panel: LEDs, buzzer, button, switch and light sensor
• Format: break-apart ProtoSnap panel, pieces pre-wired until snapped off
• Part number: SparkFun DEV-14346

LilyPad ProtoSnap Plus Applications

• Learning Arduino programming with e-textiles
• Light-up clothing, bags and accessories
• Classroom sewn-circuit and STEM workshops
• Costumes, cosplay and soft interactive toys

What's in the Box

• 1 × LilyPad ProtoSnap Plus panel

Tip: Program and test the whole panel while the parts are still connected; once you snap them apart, each connection must be sewn with conductive thread. Keep thread lines from touching each other to avoid short circuits.
