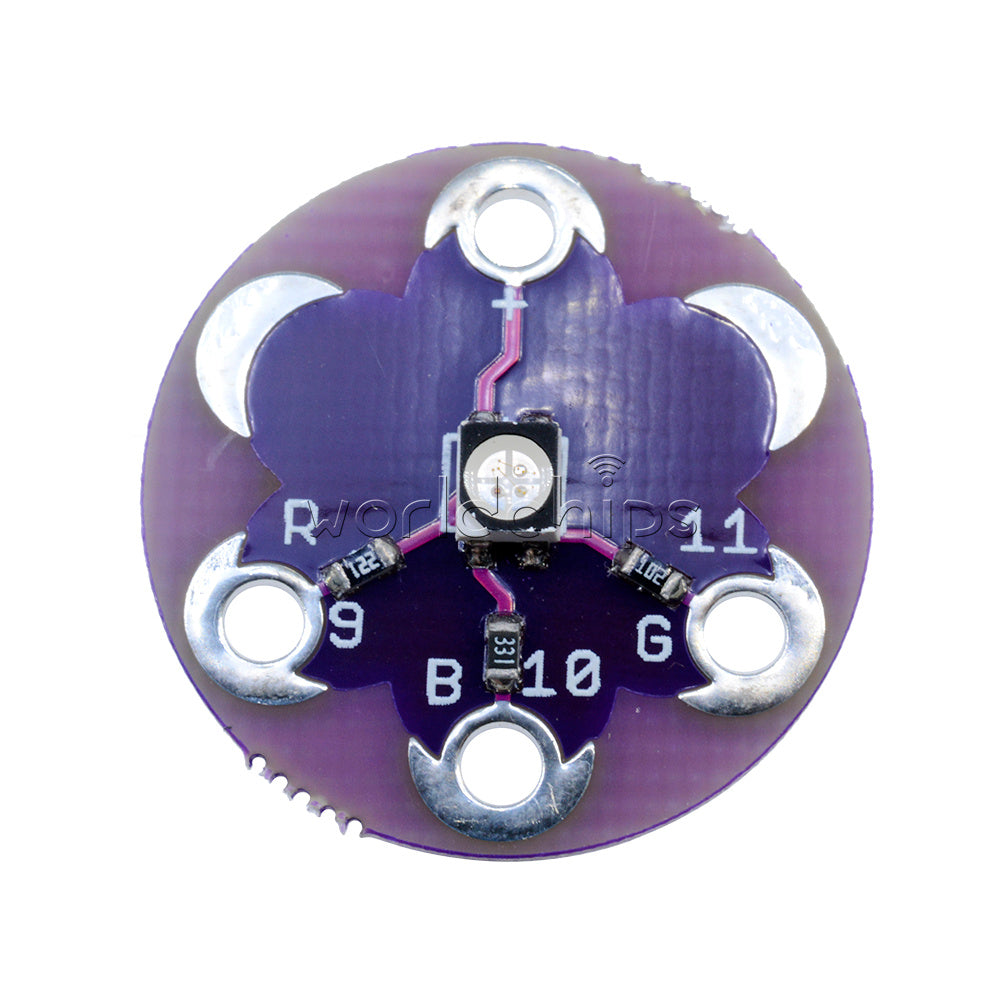

LilyPad Tri-Color LED RGB

The LilyPad Tri-Color LED RGB is a sewable LilyPad board with a red, green and blue LED in one package. By controlling the three colours separately, ideally with PWM, you can mix almost any colour for wearable and e-textile projects, and sew the board in place with conductive thread.

LilyPad Tri-Color LED RGB Specifications

• LED: RGB (red, green, blue) in one package
• Configuration: common anode
• Connections: + (common anode) and separate R, G and B pads
• Control: pull a colour pad LOW to light it; use PWM to mix colours
• Mounting: large sewable pads for conductive thread

LilyPad Tri-Color LED RGB Applications

• Colour-changing clothing and costumes
• Status lights that change colour with sensor readings
• Mood lights and light-up accessories
• Learning PWM and colour mixing in e-textile classes

What's in the Box

• 1 × LilyPad Tri-Color LED board

Tip: Because the LED is common anode, the logic is inverted: connect + to the 3.3 V supply and each colour pad to a PWM pin, then analogWrite(pin, 0) gives full brightness and 255 turns that colour off.
