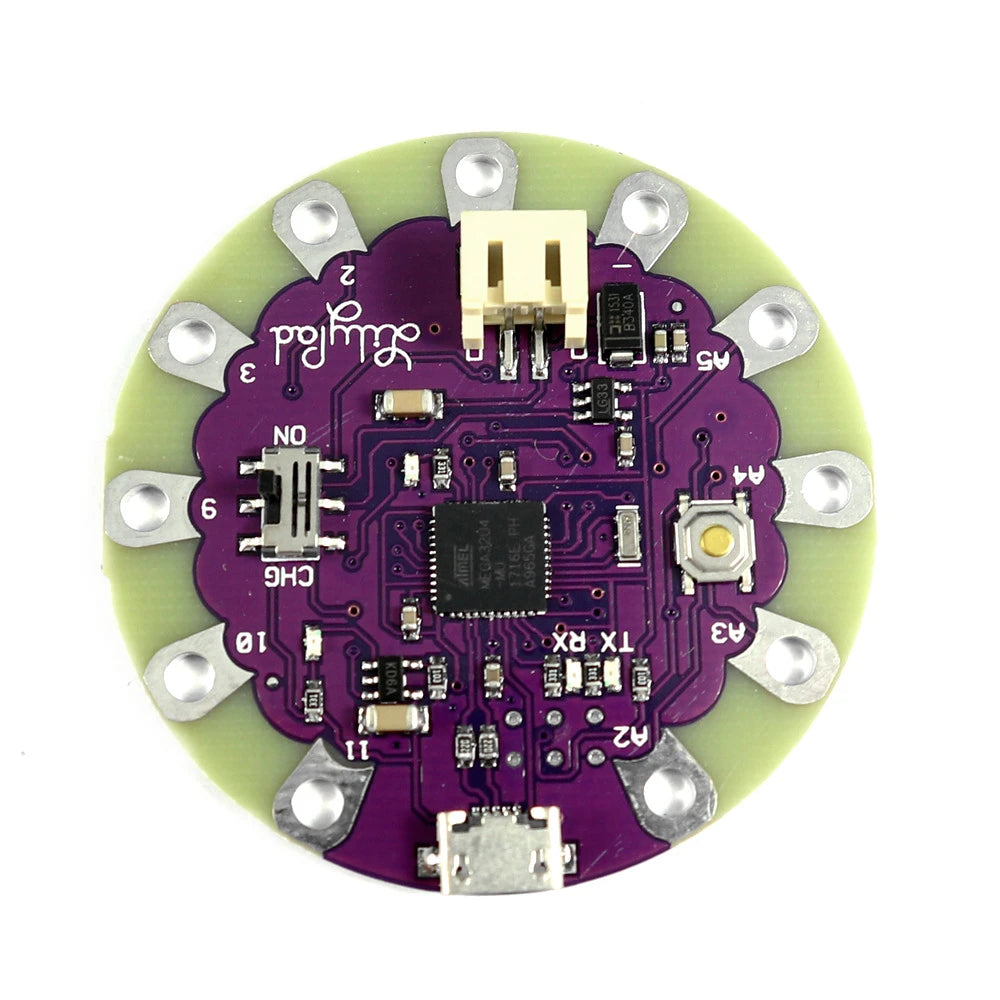

LilyPad USB ATmega32U4 Board

The LilyPad USB ATmega32U4 Board is a round, sewable Arduino-compatible board for wearable and e-textile projects. The ATmega32U4 has native USB, so you program it straight from the Arduino IDE over micro-USB, and the same port charges a LiPo battery plugged into the on-board JST socket. Large pads let you sew LEDs, sensors and buttons to it with conductive thread.

LilyPad USB ATmega32U4 Board Specifications

• Microcontroller: ATmega32U4, 32 KB flash (4 KB used by the bootloader), 2.5 KB SRAM, 1 KB EEPROM
• Clock speed: 8 MHz
• Operating voltage: 3.3 V
• Input voltage: 3.8 V to 5 V
• I/O: 9 digital pins, 4 PWM outputs, 4 analog inputs
• USB: micro-USB for programming and power
• Battery: JST socket and built-in charger for a 3.7 V LiPo
• Switch: on-board ON/OFF switch
• Size: 50 mm diameter, thin 0.8 mm PCB

LilyPad USB ATmega32U4 Board Applications

• Light-up clothing, bags and costumes
• Wearable sensors and interactive textiles
• Arduino lessons in design and art classes
• Small USB keyboard or mouse projects using native USB

What's in the Box

• 1 × LilyPad USB ATmega32U4 board

Tip: The board runs at 3.3 V, so do not feed 5 V signals into its pins. Select 'LilyPad Arduino USB' in the Arduino IDE, and turn the switch on when running from a LiPo battery.
