Load Cell Amp Sparkfun SEN13230

Part no. 10450079

$18.00
Sold out
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

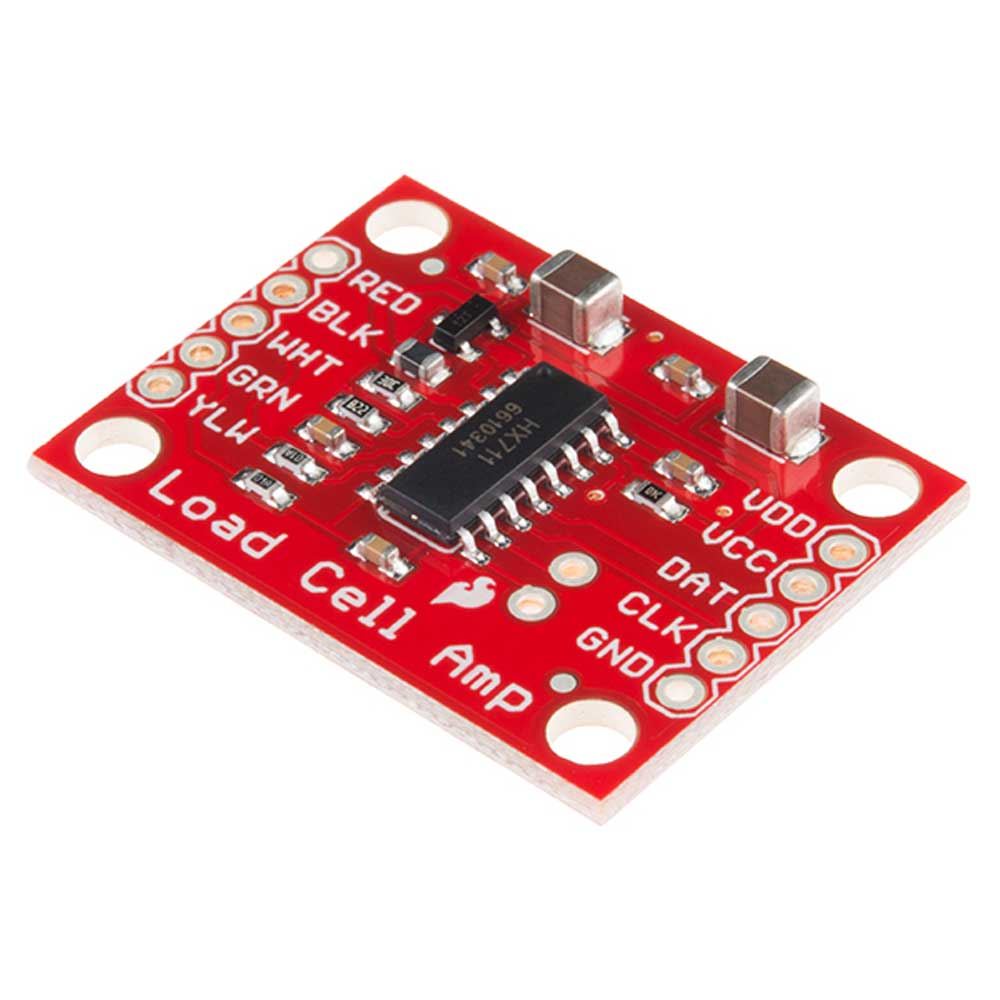

The Load Cell Amp (SparkFun SEN-13230) is a small breakout board for the HX711, a precision 24-bit analog-to-digital converter designed for weigh scales. It amplifies the tiny signal from a strain-gauge load cell and sends a digital reading to your Arduino, ESP32 or Raspberry Pi over two wires, so you can build a scale or force sensor without designing your own amplifier.

Load Cell Amp Specifications

  • Chip: HX711, 24-bit ADC
  • Inputs: 2 differential channels (channel A gain 128 or 64, channel B gain 32)
  • Output data rate: 10 or 80 samples per second
  • Supply voltage: 2.6 V to 5.5 V
  • Interface: 2-wire serial (data and clock) on any digital pins
  • Load cell connections: E+ and E− (excitation), A+ and A− (signal)

Load Cell Amp Applications

  • Digital kitchen, luggage and platform scales
  • Measuring force or tension with strain gauges
  • Monitoring tanks or beehives by weight
  • Smart pet feeders and inventory shelves
  • Physics and engineering lab experiments

What's in the Box

  • 1 × Load Cell Amp board SEN-13230

Tip: A typical 4-wire load cell connects red to E+, black to E−, white to A− and green to A+, but colours vary, so check your load cell's datasheet. Use an HX711 library, tare the scale at start-up and calibrate it with a known weight.
