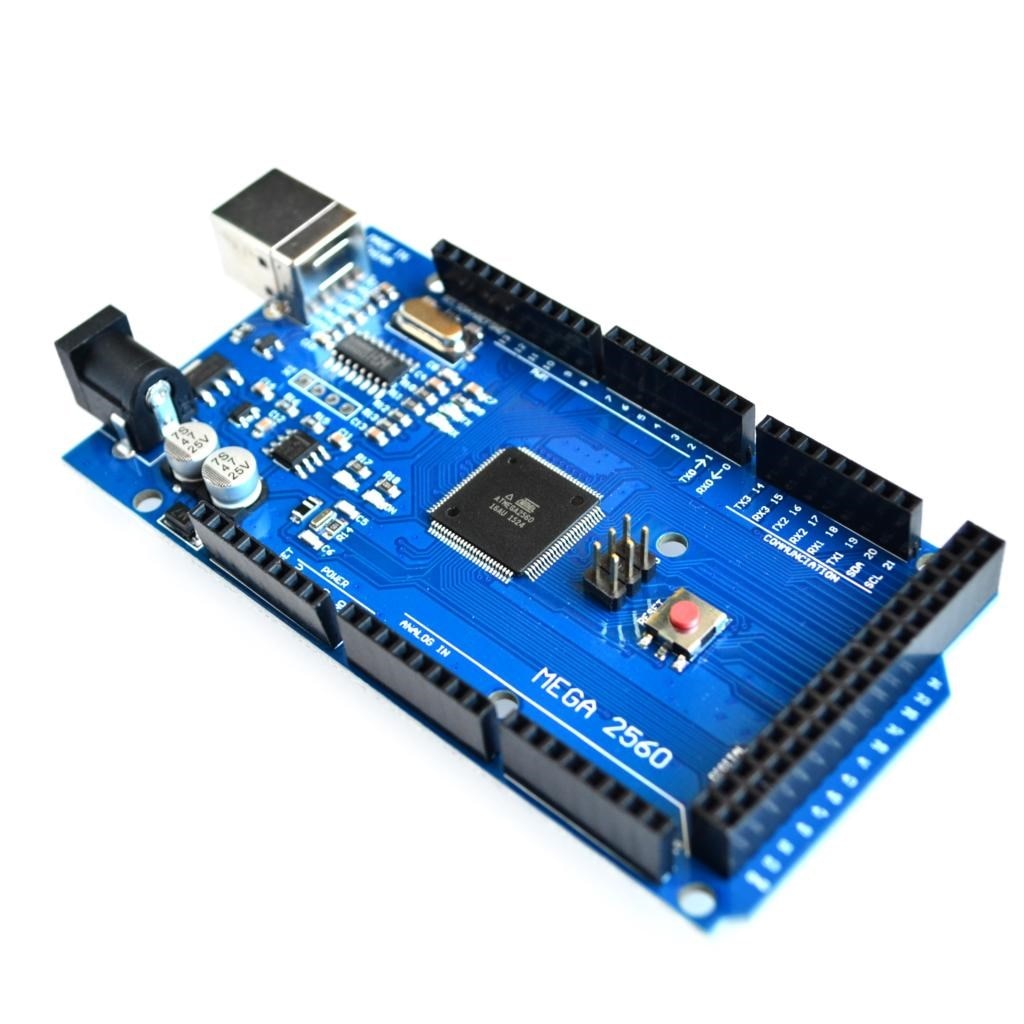

MEGA 2560 R3 Improved Version CH340 +usb cable

The MEGA 2560 R3 Improved Version CH340 is an Arduino Mega-compatible development board built around the ATmega2560 microcontroller, with a CH340 chip handling the USB connection. With 54 digital pins, 16 analog inputs and 4 hardware serial ports, it is the board to choose when an Uno runs out of pins or memory, for example in 3D printers, robots and large sensor projects. A USB cable is included.

MEGA 2560 R3 Specifications

• Microcontroller: ATmega2560
• USB-to-serial chip: CH340
• Operating voltage: 5 V
• Recommended input voltage (DC jack or VIN): 7–12 V
• Clock speed: 16 MHz
• Digital I/O pins: 54, of which 15 provide PWM
• Analog inputs: 16
• Hardware serial ports: 4 UARTs
• Memory: 256 KB flash (8 KB used by the bootloader), 8 KB SRAM, 4 KB EEPROM

MEGA 2560 R3 Applications

• 3D printer and CNC controllers, for example with a RAMPS shield
• Robots with many motors, sensors and servos
• LED matrices, displays and large I/O projects
• Home automation hubs and data loggers
• University and school projects

What's in the Box

• 1 × MEGA 2560 R3 board with CH340
• 1 × USB cable

Tip: If your computer does not detect the board, install the CH340 USB driver, then select "Arduino Mega or Mega 2560" in the Arduino IDE. Recent versions of Windows, macOS and Linux often include this driver already.
