MEGA 2560 R3 +USB Cable

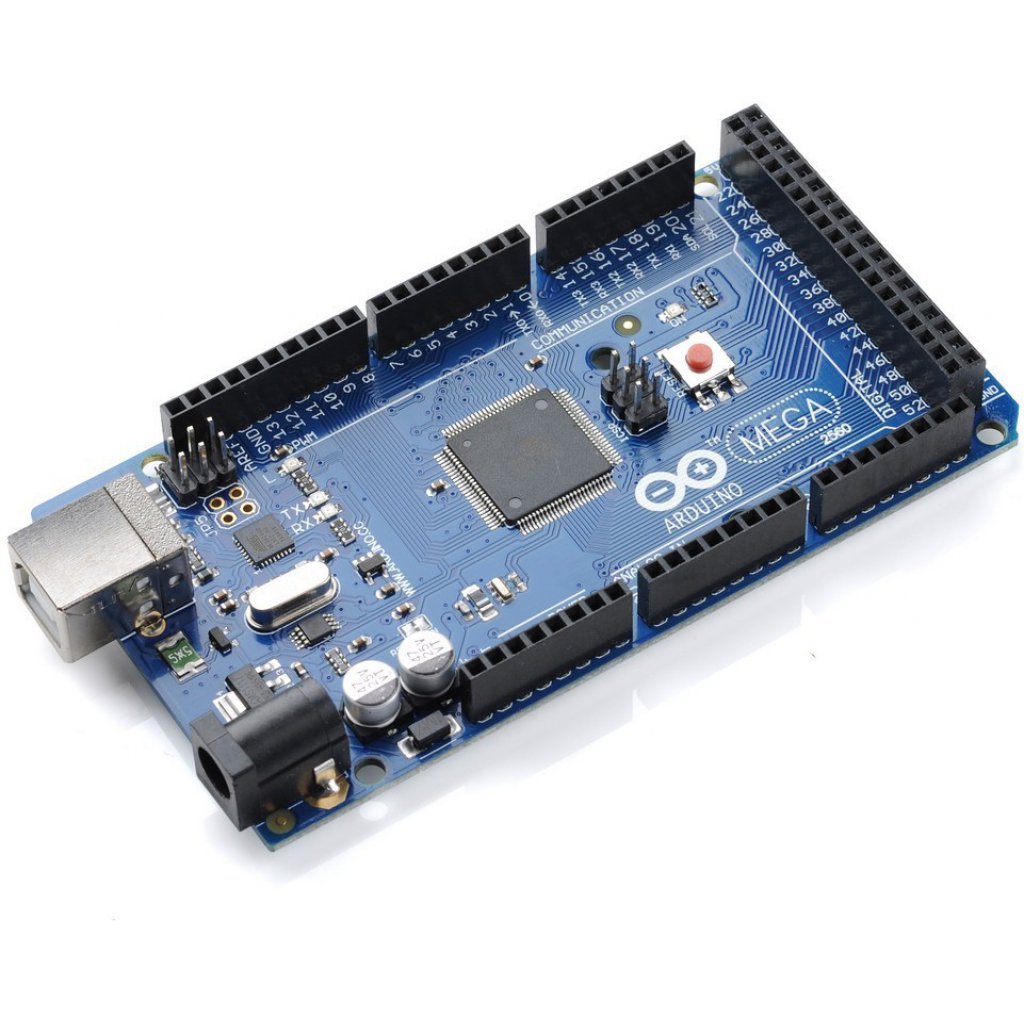

The MEGA 2560 R3 is an Arduino Mega 2560 compatible development board built around the ATmega2560 microcontroller, supplied with a USB cable for programming and power. It offers 54 digital I/O pins, 16 analog inputs and 4 hardware serial ports, far more than the Arduino Uno, so it suits projects with many sensors, motors and displays. It is programmed with the Arduino IDE and fits standard Mega shields.

MEGA 2560 R3 Specifications

• Microcontroller: ATmega2560
• Clock speed: 16 MHz
• Operating voltage: 5 V
• Input voltage (recommended): 7–12 V
• Digital I/O pins: 54 (15 with PWM)
• Analog input pins: 16
• Hardware serial ports (UART): 4
• Flash memory: 256 KB (8 KB used by the bootloader)
• SRAM: 8 KB
• EEPROM: 4 KB
• USB connector: USB Type-B

MEGA 2560 R3 Applications

• 3D printer and CNC controllers with a RAMPS 1.4 shield
• Robots with many motors, servos and sensors
• Home automation and IoT projects
• Data logging from several sensors at once
• STEM education, school and university labs

What's in the Box

• 1 × MEGA 2560 R3 development board
• 1 × USB cable

Tip: In the Arduino IDE, select Arduino Mega or Mega 2560 as the board. If the board does not show up as a COM port, check which USB-to-serial chip it uses; boards with a CH340 chip need the CH340 driver installed first.
