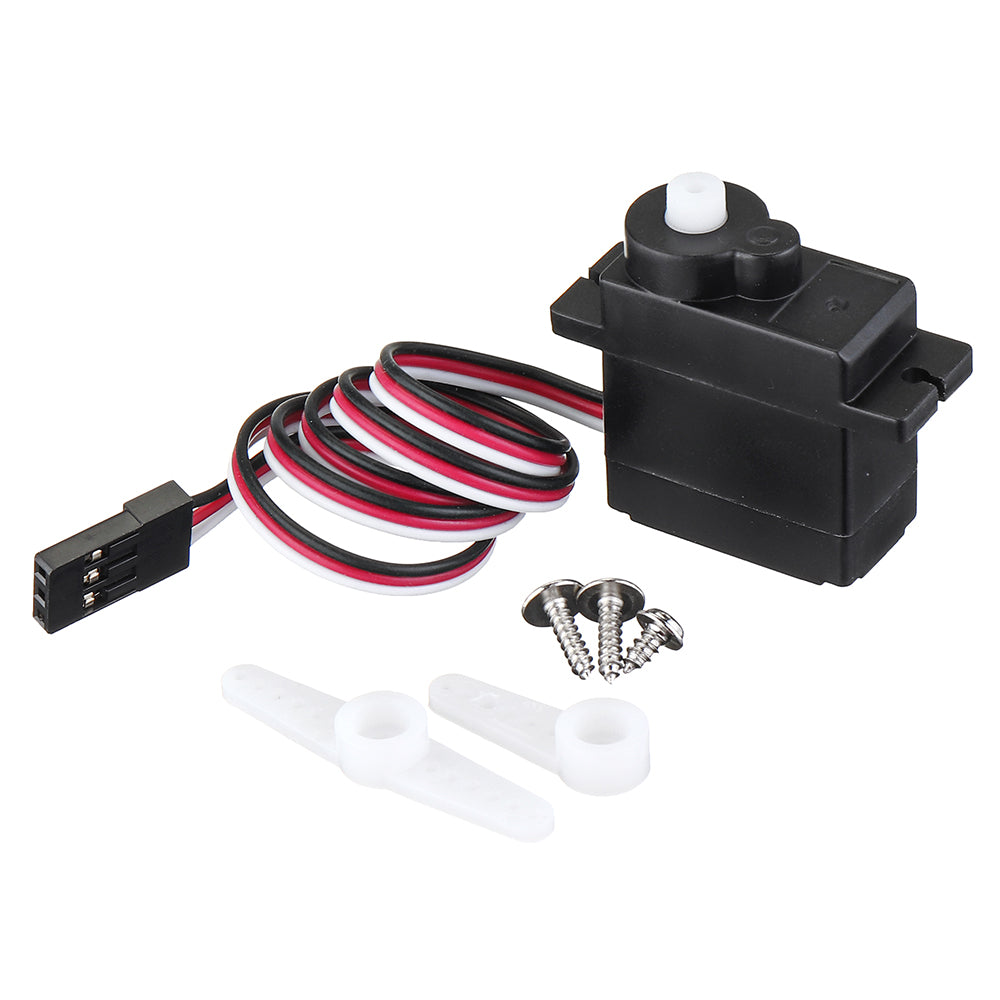

Micro Servo 9g A0090 Sparkfun ROB09065

Part no. 10450147

$19.00
In stock
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

The Micro Servo 9g A0090 (SparkFun ROB-09065) is a small, light hobby servo that turns its output shaft to a set angle based on a pulse signal from a microcontroller. At about 9 g it suits small robots, RC models and moving parts in Arduino and ESP32 projects where space and weight matter.

Micro Servo 9g A0090 Specifications

  • Weight: about 9 g
  • Model: A0090
  • Control: standard hobby servo PWM, 50 Hz with pulses of about 1–2 ms
  • Wiring: 3 wires for power, ground and signal
  • Part number: SparkFun ROB-09065

Micro Servo 9g A0090 Applications

  • Small robot arms and grippers
  • Pan-tilt mounts for cameras and sensors
  • Control surfaces on RC planes and boats
  • Animatronics, pointers, latches and small moving displays
  • Learning servo control with the Arduino Servo library

What's in the Box

  • 1 × 9 g micro servo

Tip: Use the Arduino Servo library to set the angle. When you use more than one servo, power them from a separate 5 V supply and connect its ground to the Arduino ground, because servos draw current spikes that can reset the board.
