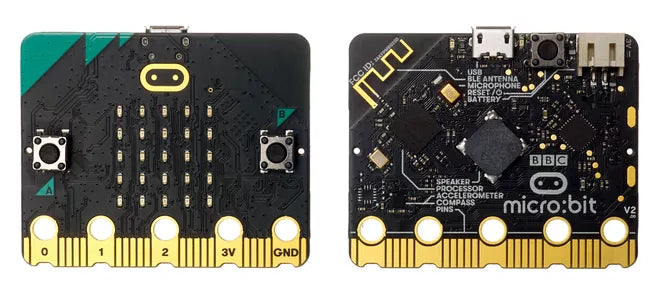

Microbit V2.2 - BBC

The Microbit V2.2 is version 2.2 of the BBC micro:bit, a pocket-sized programmable computer made for learning to code and build electronics. It has a 5 × 5 LED display, two buttons, a touch-sensitive logo, a built-in speaker and microphone, a motion sensor and compass, and radio and Bluetooth wireless. Students can program it in a web browser with Microsoft MakeCode blocks, JavaScript or Python, so it suits schools, STEM clubs and beginners of all ages.

Microbit V2.2 Specifications

• Processor: Nordic nRF52833, 64 MHz Arm Cortex-M4 with FPU
• Memory: 512 KB flash, 128 KB RAM
• Display: 5 × 5 red LED matrix, also used as a light sensor
• Inputs: buttons A and B, touch-sensitive logo and MEMS microphone
• Sound: built-in speaker
• Sensors: accelerometer, magnetometer (compass) and temperature sensor
• Wireless: 2.4 GHz micro:bit radio and Bluetooth Low Energy
• Connections: edge connector with large rings for pins 0, 1, 2, 3V and GND
• Power: micro USB, or a 3 V battery pack (2 × AAA) on the battery connector

Microbit V2.2 Applications

• Teaching block coding and Python in primary and secondary schools
• STEM projects with sensors, LEDs, servos and robot kits
• Step counters, compasses, games and reaction timers
• Wireless messaging between several micro:bits
• Logging temperature, light, sound and motion data

What's in the Box

• 1 × BBC micro:bit V2.2 board

Tip: Connect the micro:bit to a computer with a micro USB data cable; it appears as a drive called MICROBIT, and you can drag the .hex file from MakeCode onto it or flash it straight from the browser. Use crocodile clips on the large rings to connect LEDs, buzzers and sensors without soldering.
