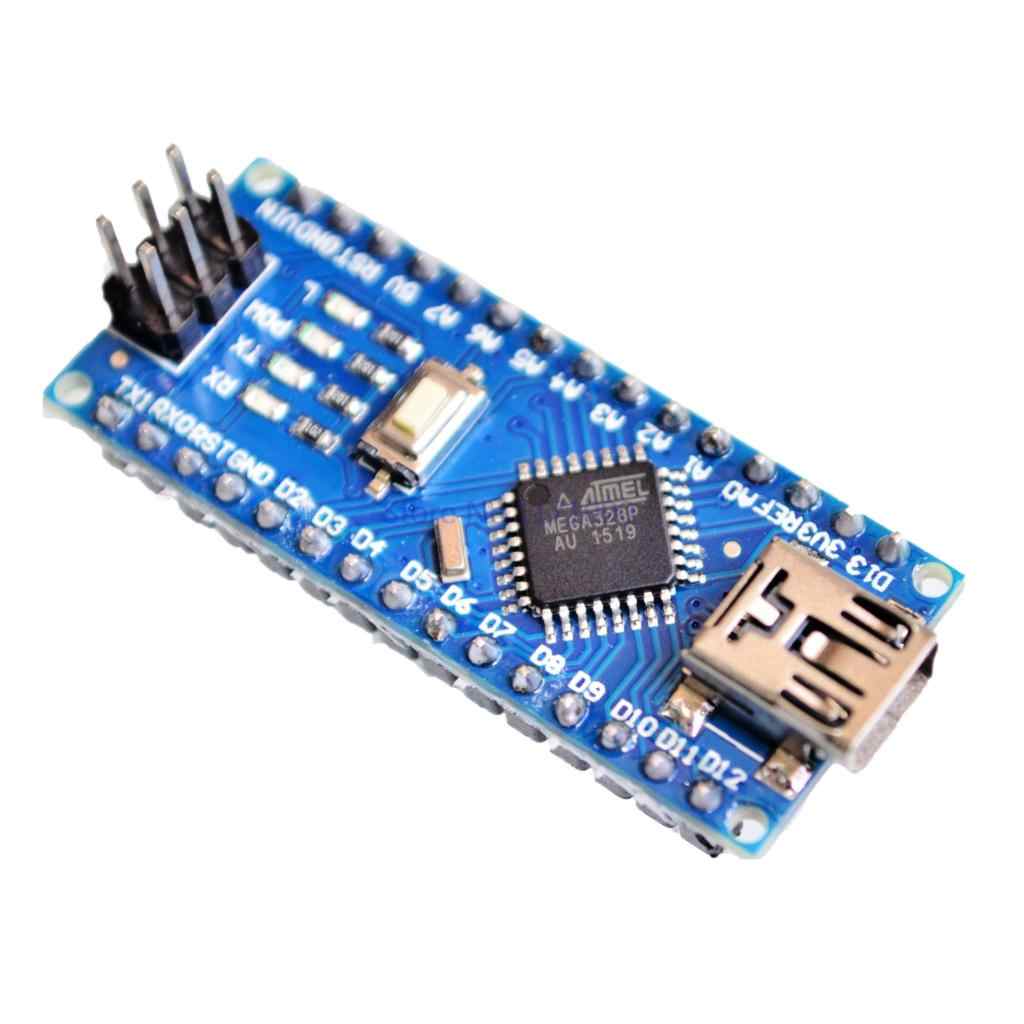

Nano V3.0 CH340 Chip+ Mini USB Cable

The Nano V3.0 CH340 is an Arduino Nano compatible board based on the ATmega328P, the same microcontroller as the Arduino Uno, in a small breadboard-friendly size. It uses the CH340 USB-to-serial chip for programming and comes with a mini USB cable, so you can start uploading sketches from the Arduino IDE straight away.

Nano V3.0 CH340 Specifications

• Microcontroller: ATmega328P, 16 MHz
• USB chip: CH340, mini USB port
• Operating voltage: 5 V
• Input voltage (VIN): 7–12 V recommended
• Digital I/O pins: 14 (6 with PWM)
• Analog inputs: 8 (A0–A7)
• Memory: 32 KB flash, 2 KB SRAM, 1 KB EEPROM
• Size: approx. 18 × 45 mm

Nano V3.0 CH340 Applications

• Breadboard prototypes and compact Arduino projects
• Robots, data loggers and sensor controllers
• Wearables and projects with limited space
• Arduino classes and university labs

What's in the Box

• 1 × Nano V3.0 CH340 board
• 1 × mini USB cable

Tip: Install the CH340 driver if your computer does not detect the board. In the Arduino IDE choose 'Arduino Nano'; if uploading fails, set the processor to 'ATmega328P (Old Bootloader)'.
