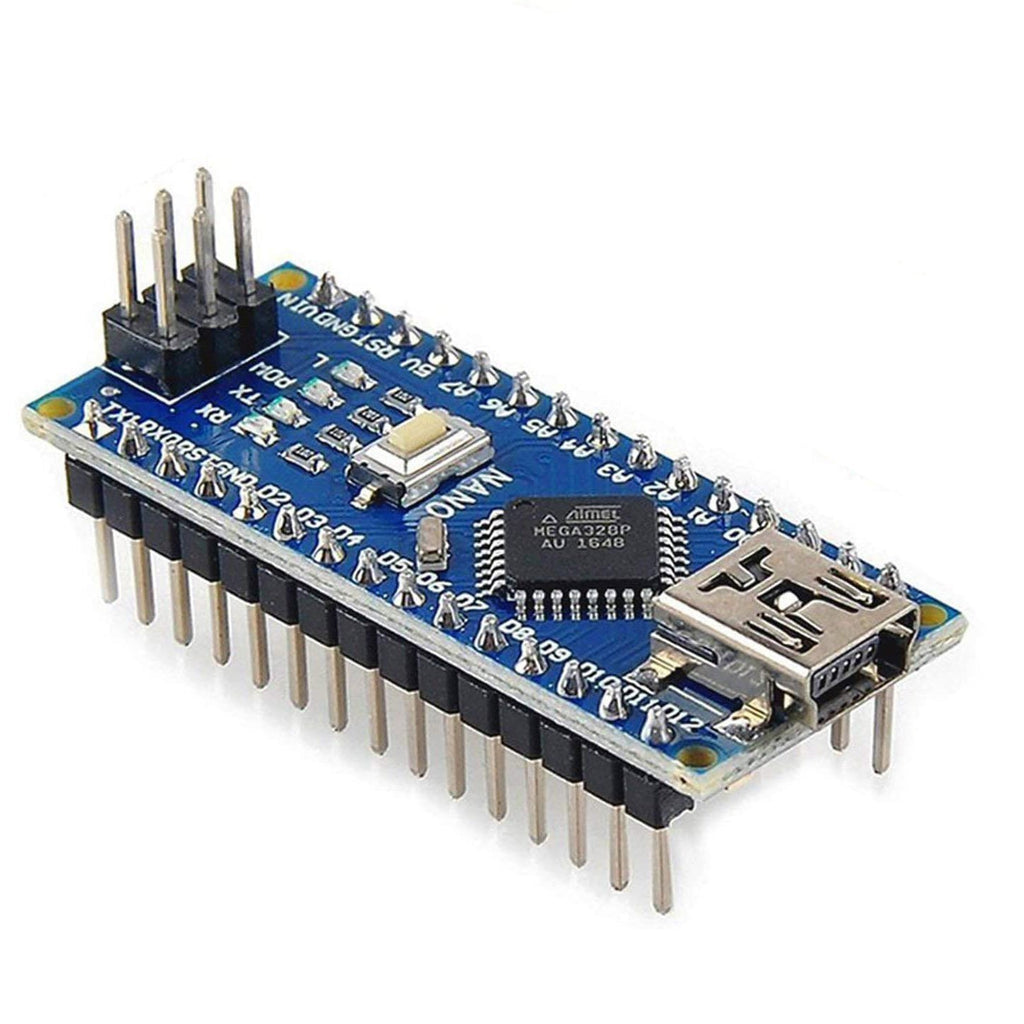

Nano V3.0 FT232 Chip+ Mini USB Cable

The Nano V3.0 FT232 is a compact Arduino Nano compatible board built around the ATmega328P microcontroller, with an FT232 USB-to-serial chip and a Mini USB cable included. It has the same core as the Arduino Uno in a small format that plugs straight into a breadboard, which makes it a favourite for small robots, wearables and permanent projects where space is tight.

Nano V3.0 FT232 Specifications

• Microcontroller: ATmega328P, 8-bit
• Clock speed: 16 MHz
• USB-to-serial chip: FT232
• USB connector: Mini-USB
• Operating voltage: 5 V
• Input voltage (VIN): 7–12 V recommended
• Digital I/O pins: 14, of which 6 support PWM
• Analog inputs: 8
• Memory: 32 KB flash (part used by the bootloader), 2 KB SRAM, 1 KB EEPROM
• Interfaces: UART, I2C and SPI

Nano V3.0 FT232 Applications

• Breadboard prototypes and quick experiments
• Small robots, wearables and compact gadgets
• Sensor nodes and data loggers
• Replacing an Arduino Uno inside finished projects
• Learning Arduino programming in schools and universities

What's in the Box

• 1 × Nano V3.0 board
• 1 × Mini USB cable

Tip: In the Arduino IDE choose Arduino Nano with the ATmega328P processor; if uploading fails, try the ATmega328P (Old Bootloader) option. FT232-based boards use the FTDI driver, which most computers install automatically.
